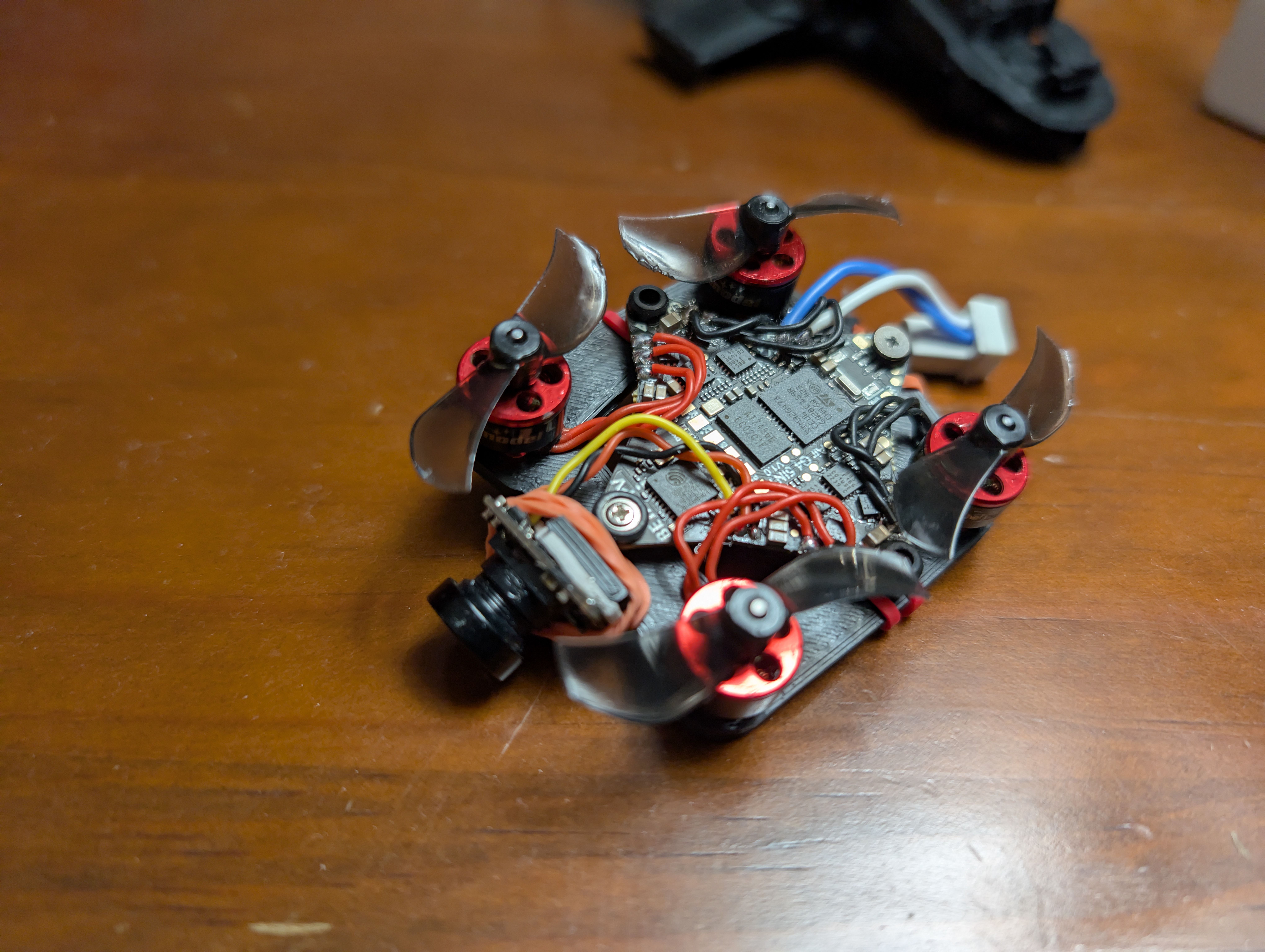

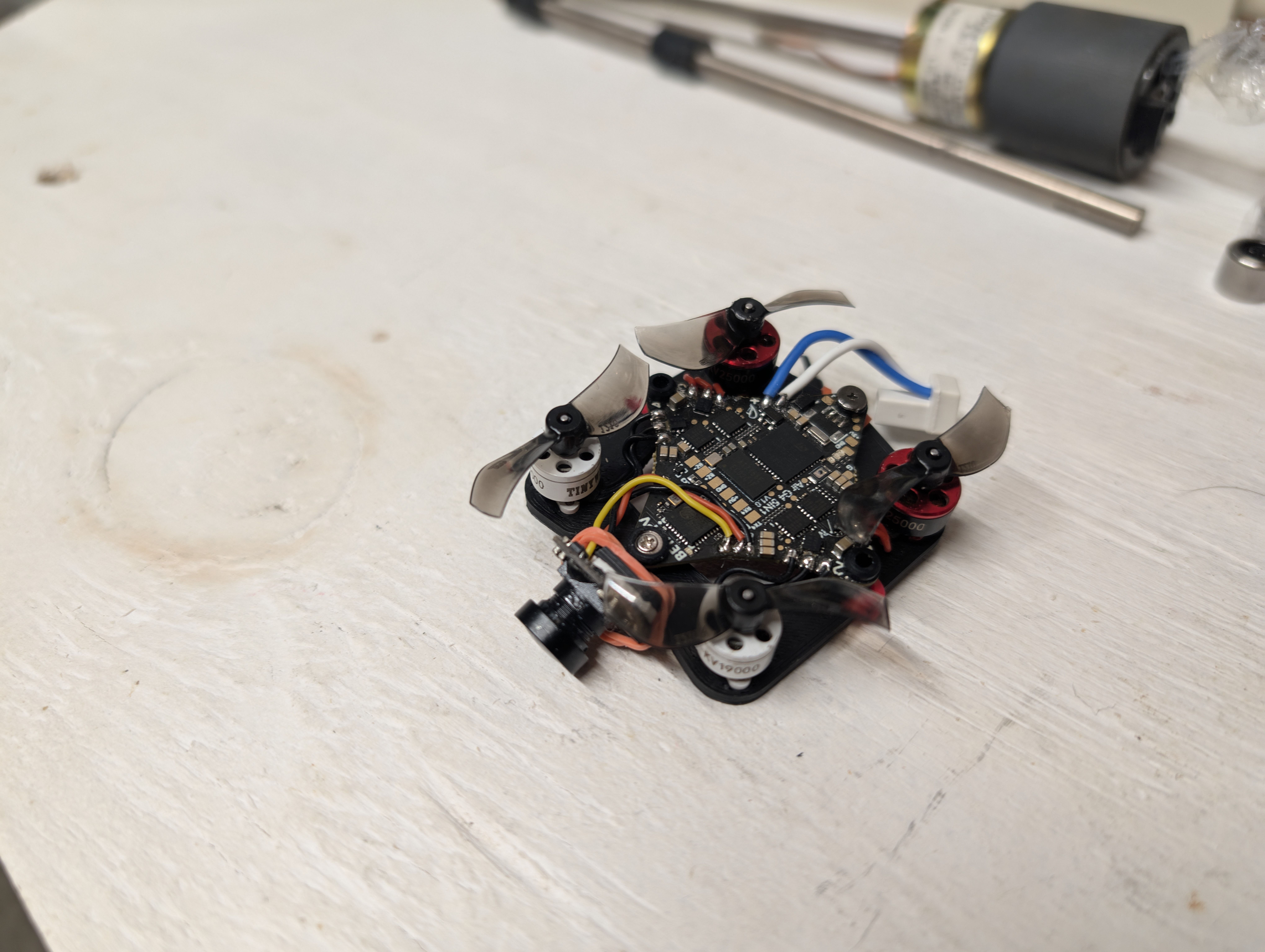

Pusher 45mm Micro Whoop

Just because you can doesn't mean you should.

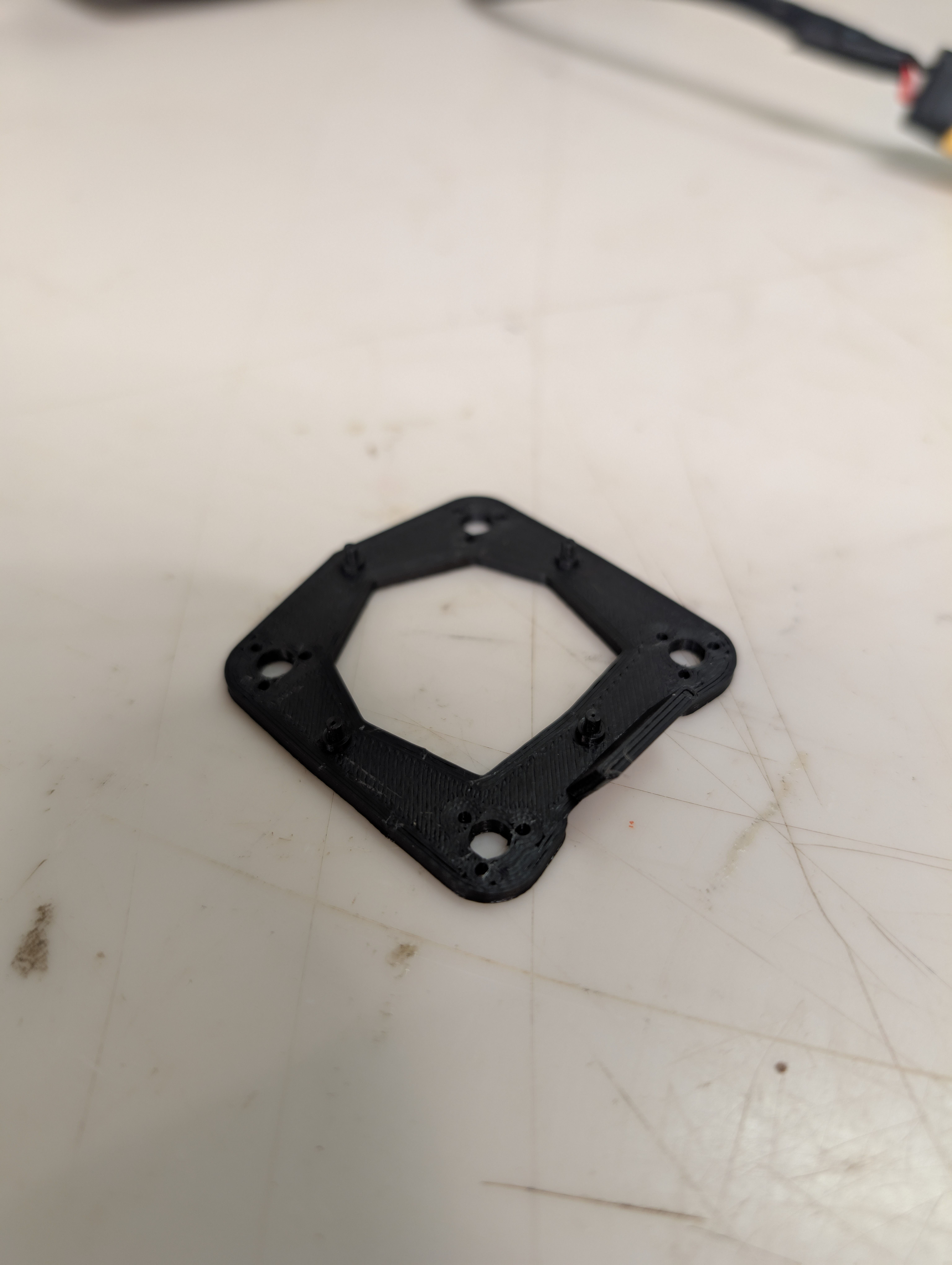

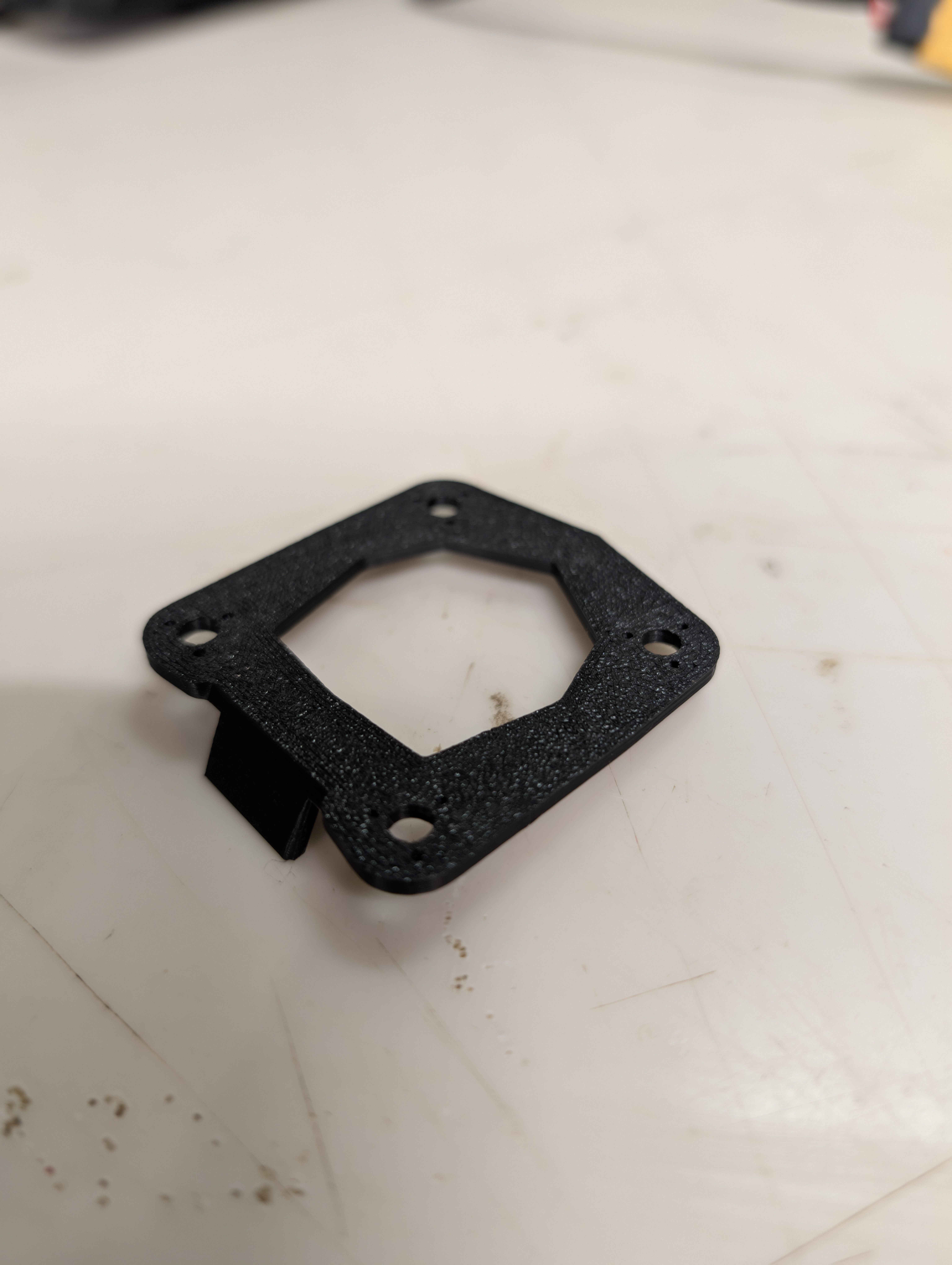

Frame File: https://www.thingiverse.com/thing:6908198/files

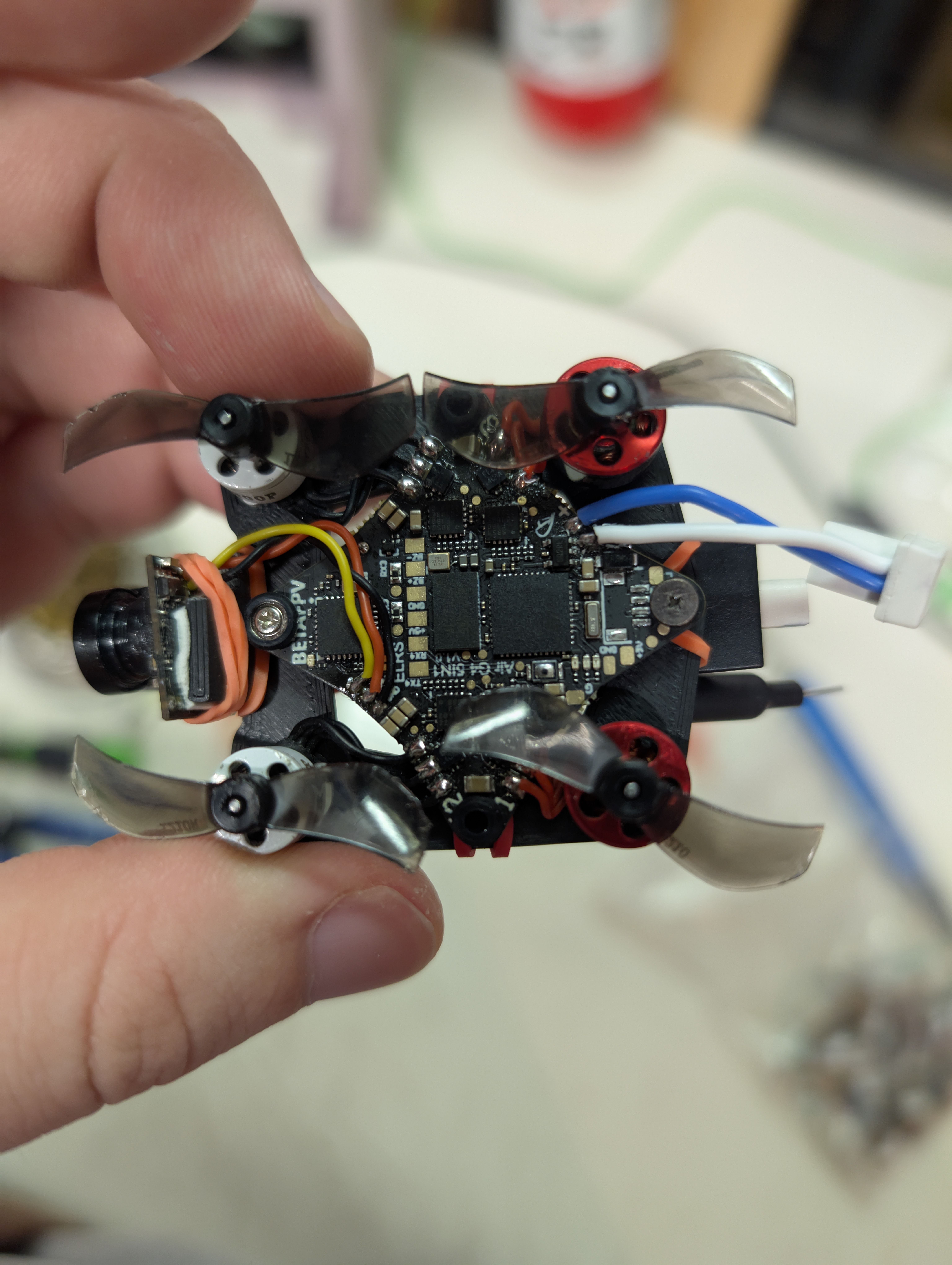

Through a set of abhorrent design choices and mistakes, the quad is now running on two 0603s and two 0802s. Don't ask. Oh and the usb port disappeared. I haven't even had this aio out of the box for a full 12 hours yet.

18.2g Dry

I lowered a few values on Chris Rosser's AOS tune preset and the tune actually feels pretty good all things considered.

Is it cool? Yes.

Do I recommend it? No. Fairly short flight times and very poor accelleration despite pretty good top speed.

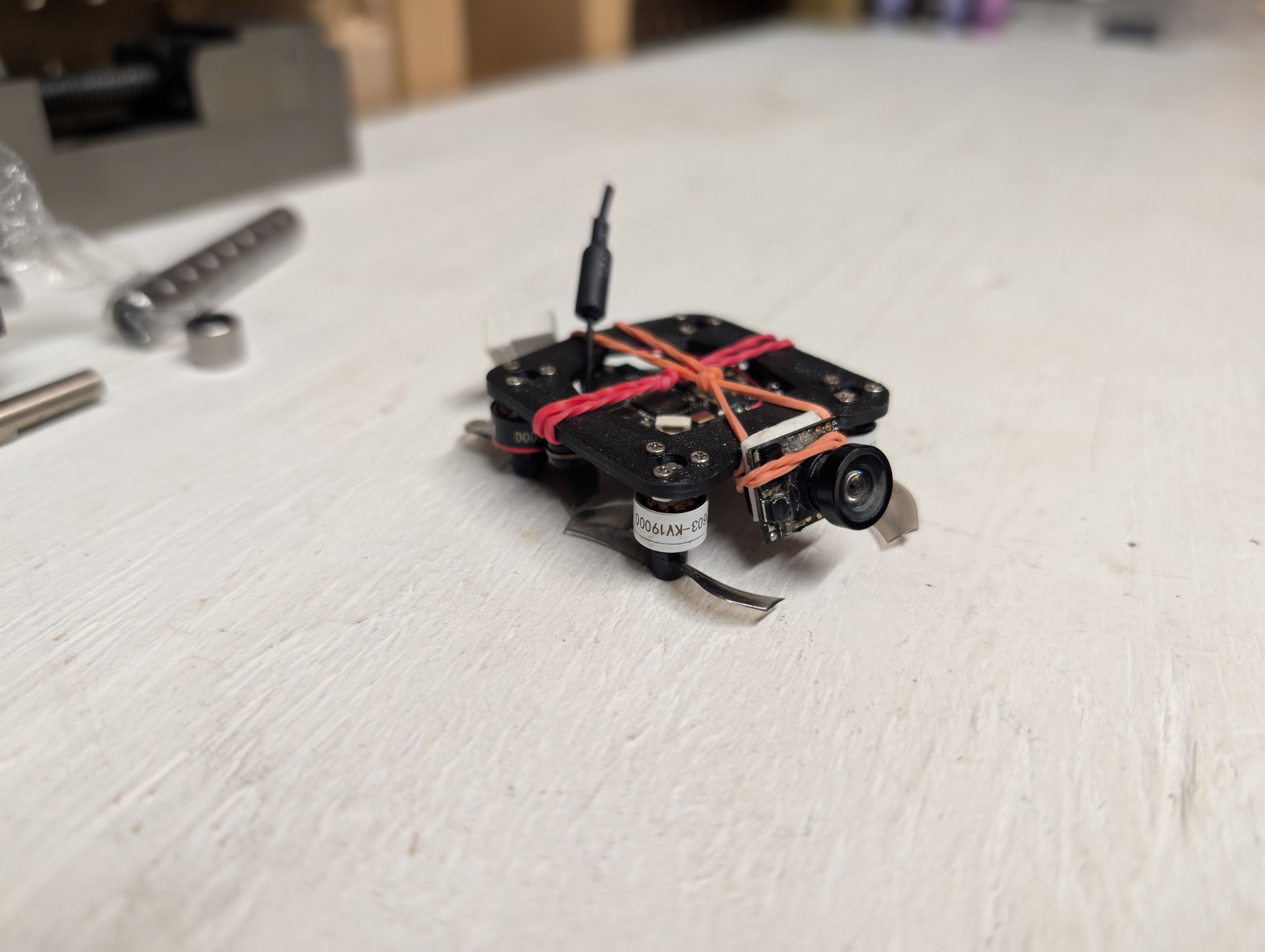

Yes its a pusher. Yes it takes off from its propellers. Yes it's a little bit of a pain.

I did it that way because I've heard you lose a lot more power obstructing the high pressure zone under the prop than the low pressure zone above it. When it stops snowing I'm going to test it's huckability outside. Because of the lack of ducts, I think this is going to be more of an outside quad.

Update: It kinda flew like crap and I stole the AIO off it when my main whoop AIO died. Maybe I'll make a 3rd attempt in another five years.
