BD2 "Mantis"- 1.2" 3D printable drone | analog / P1

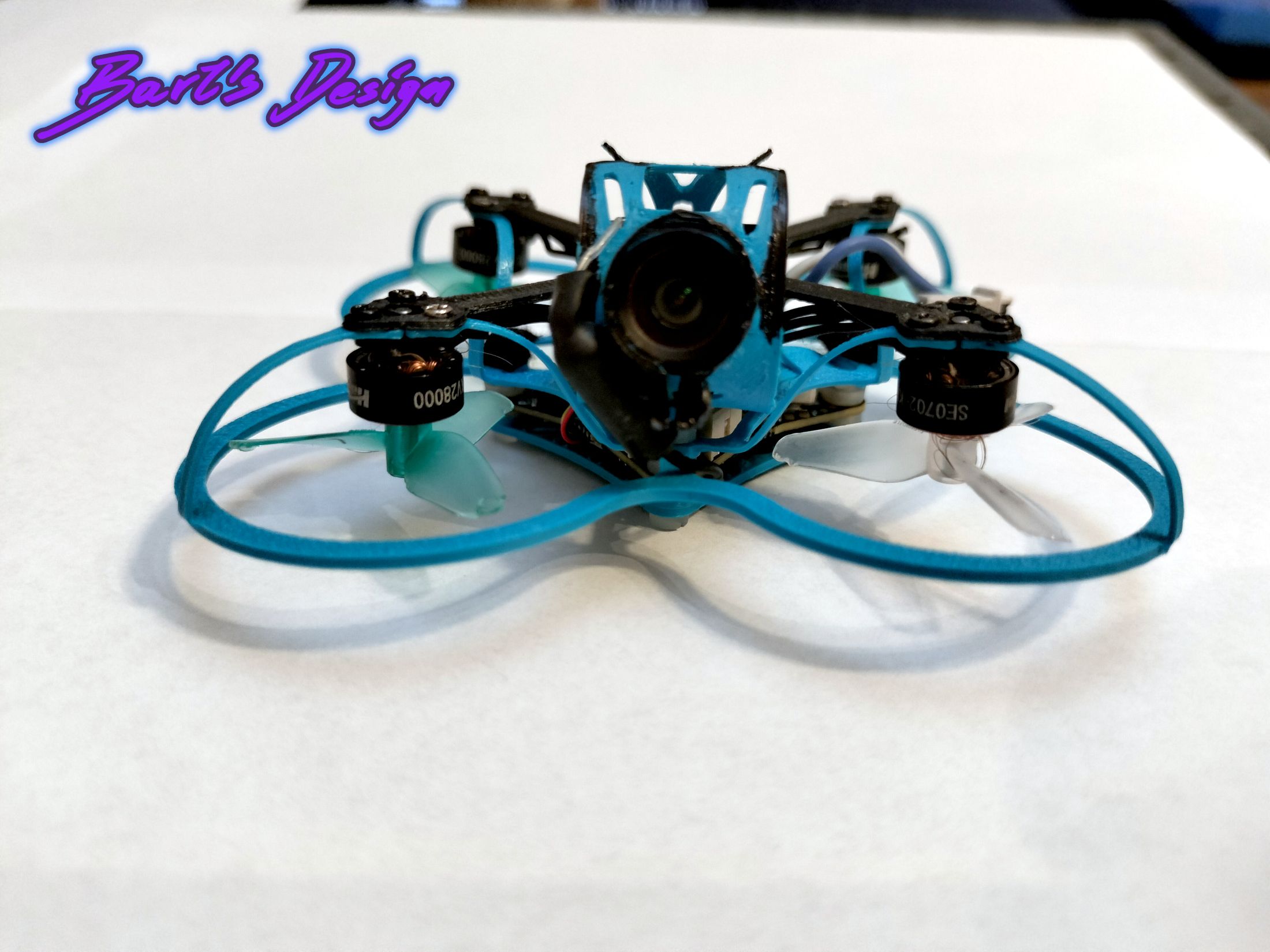

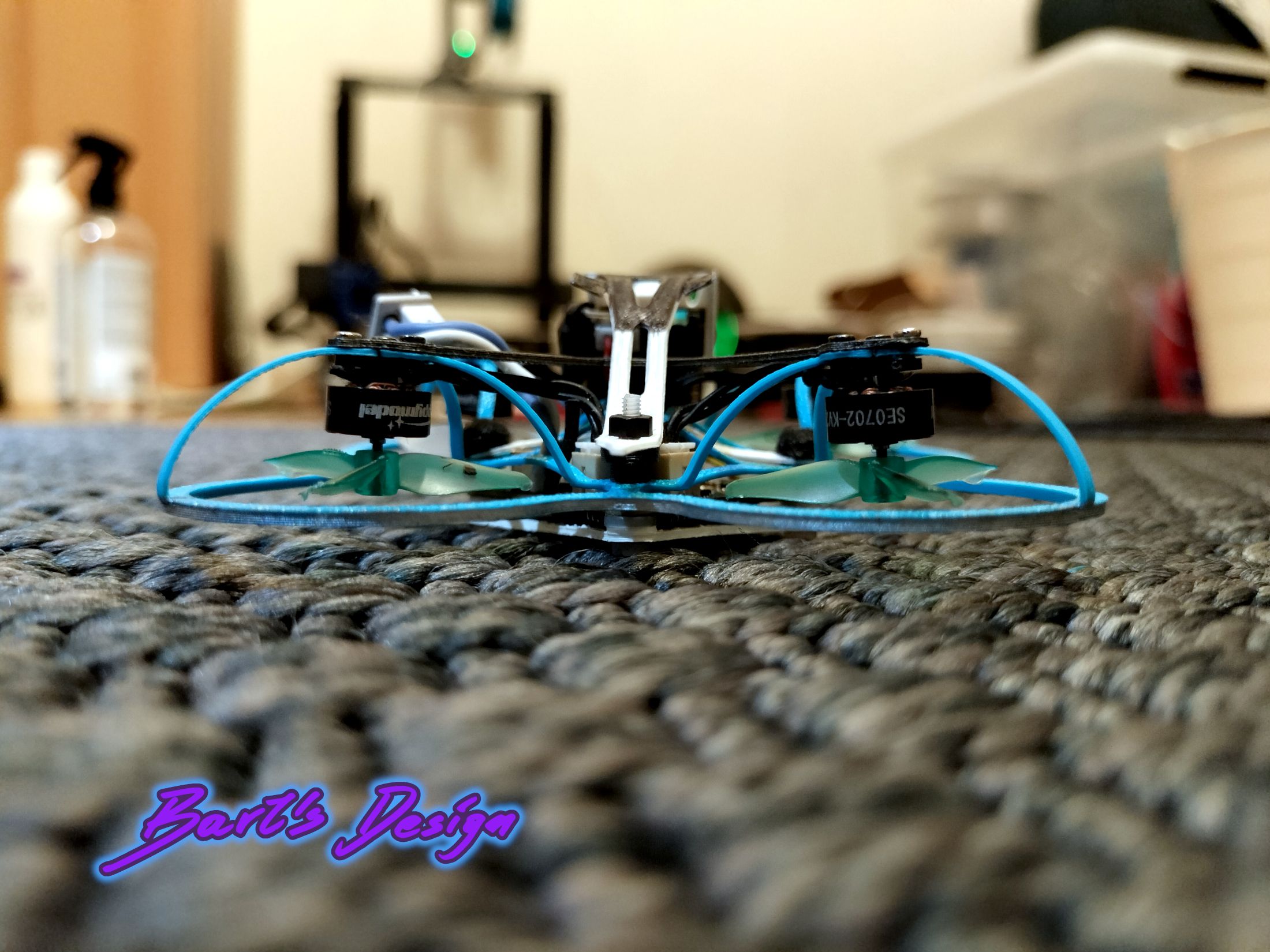

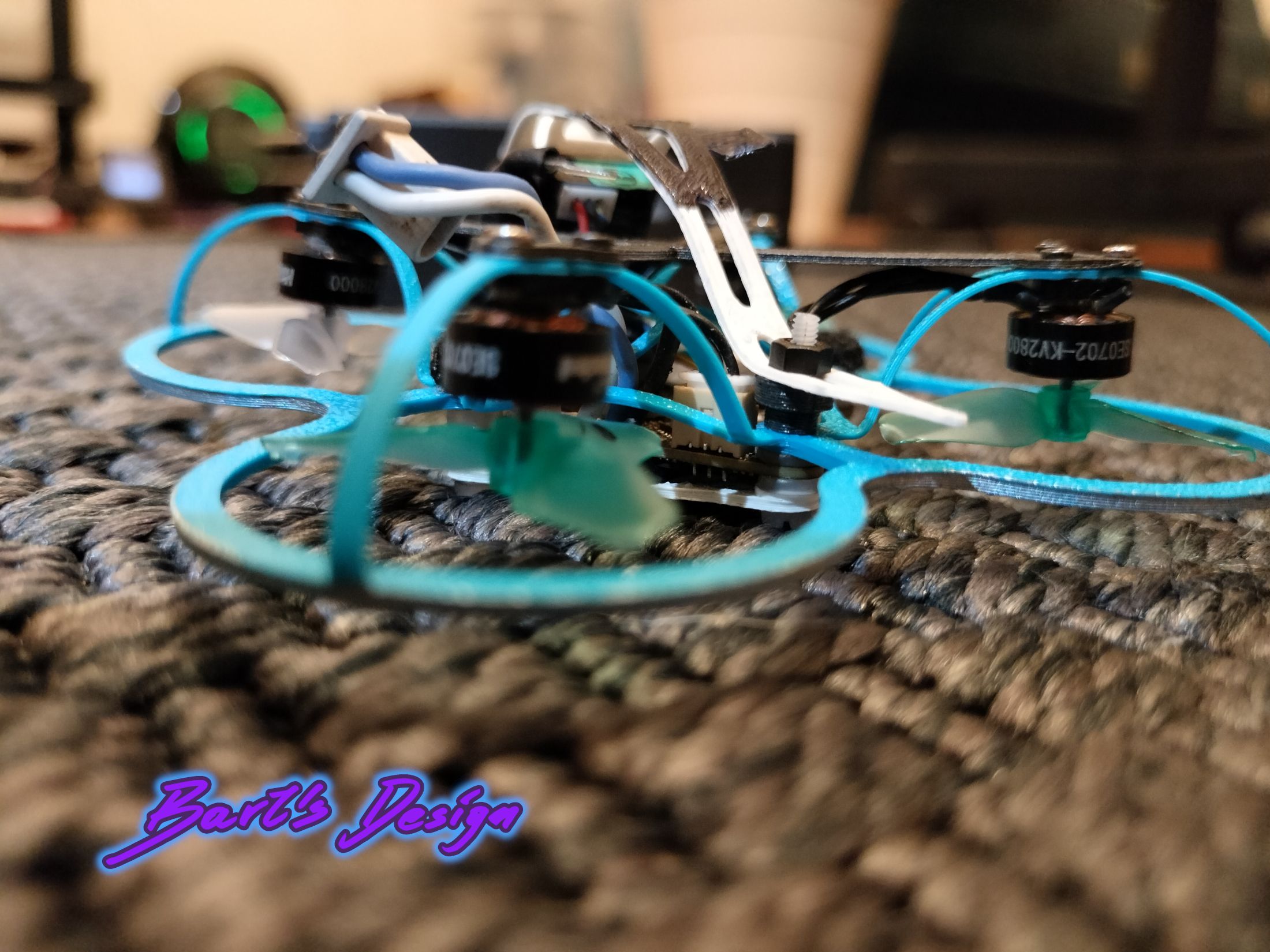

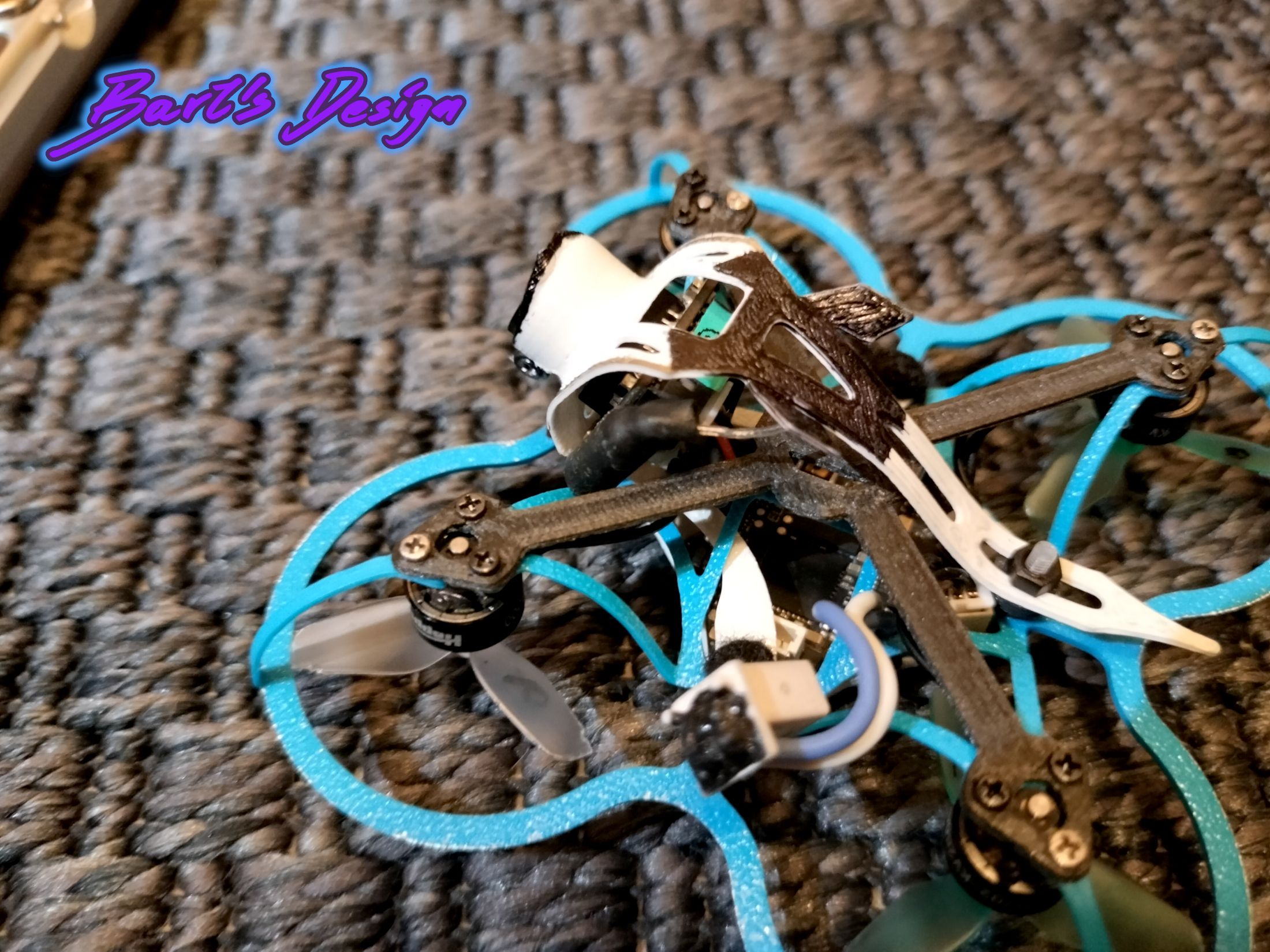

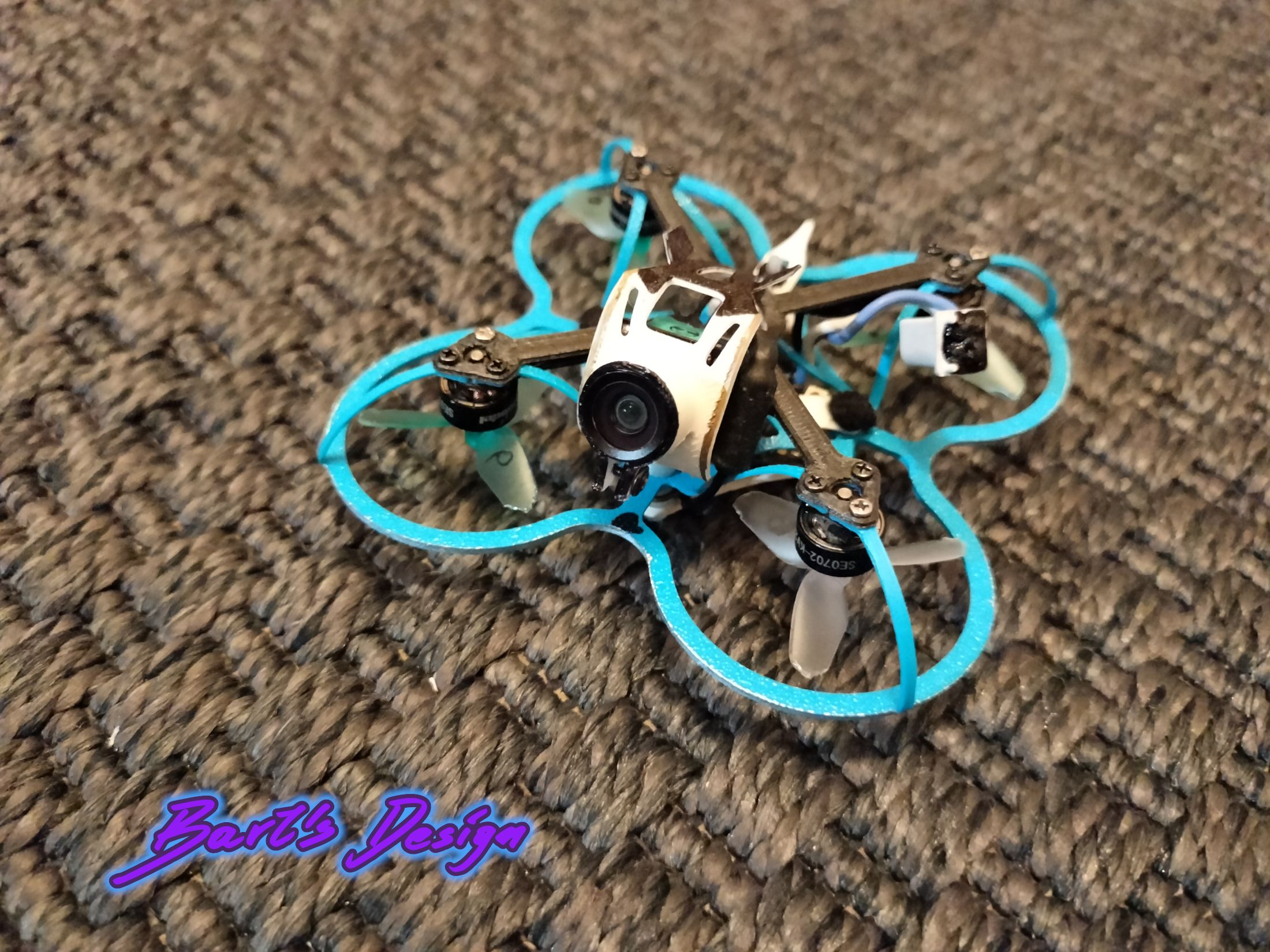

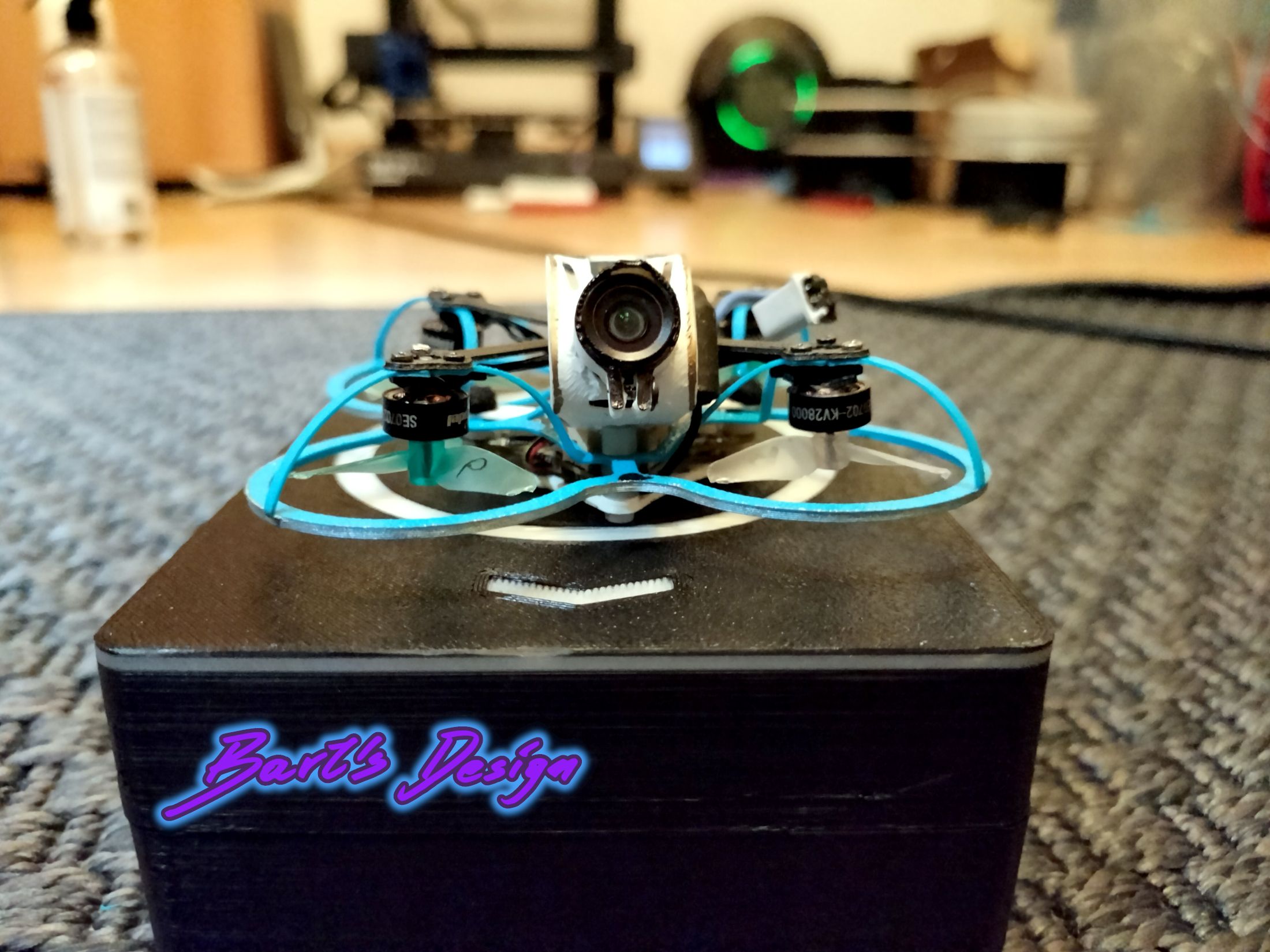

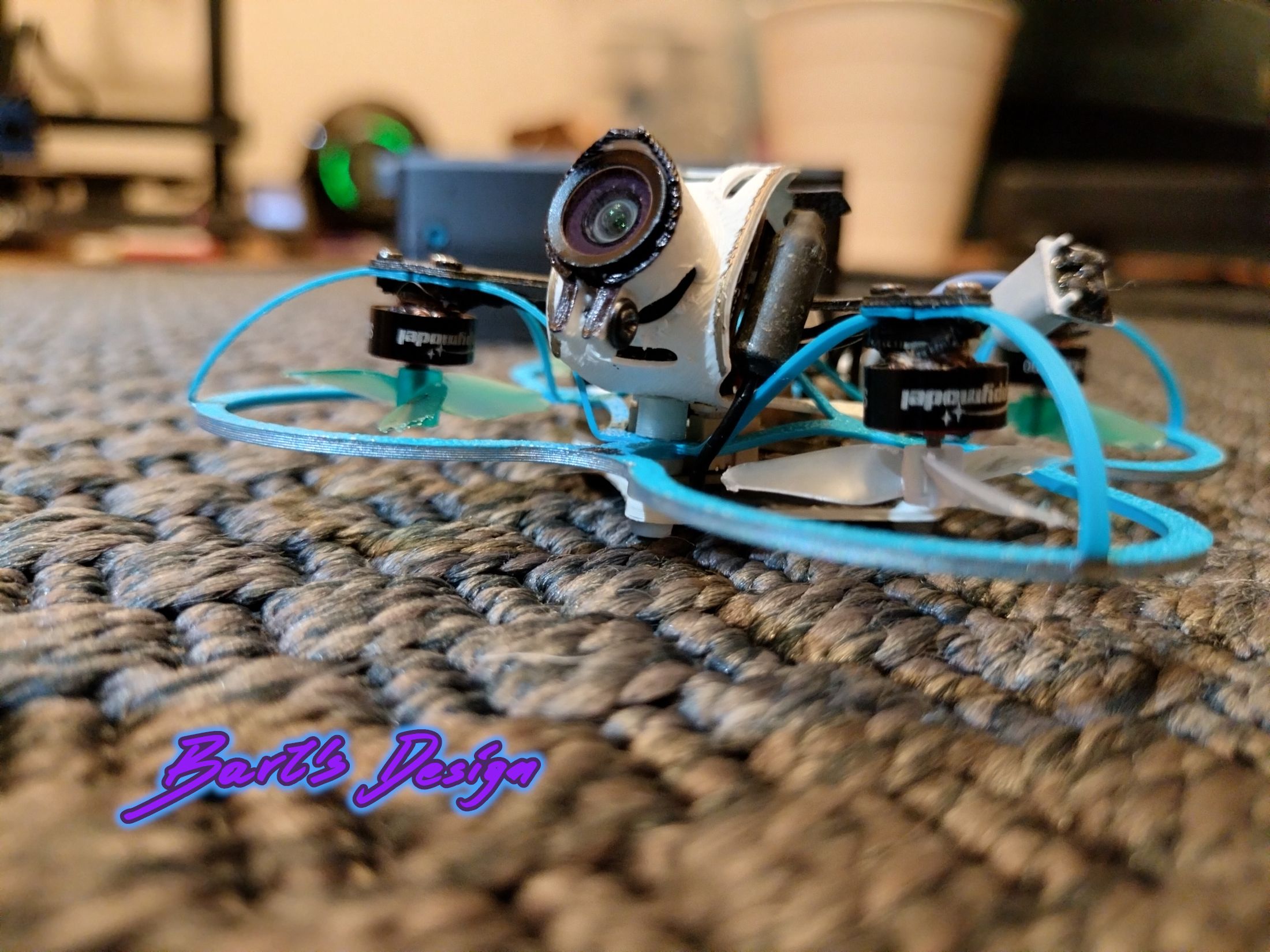

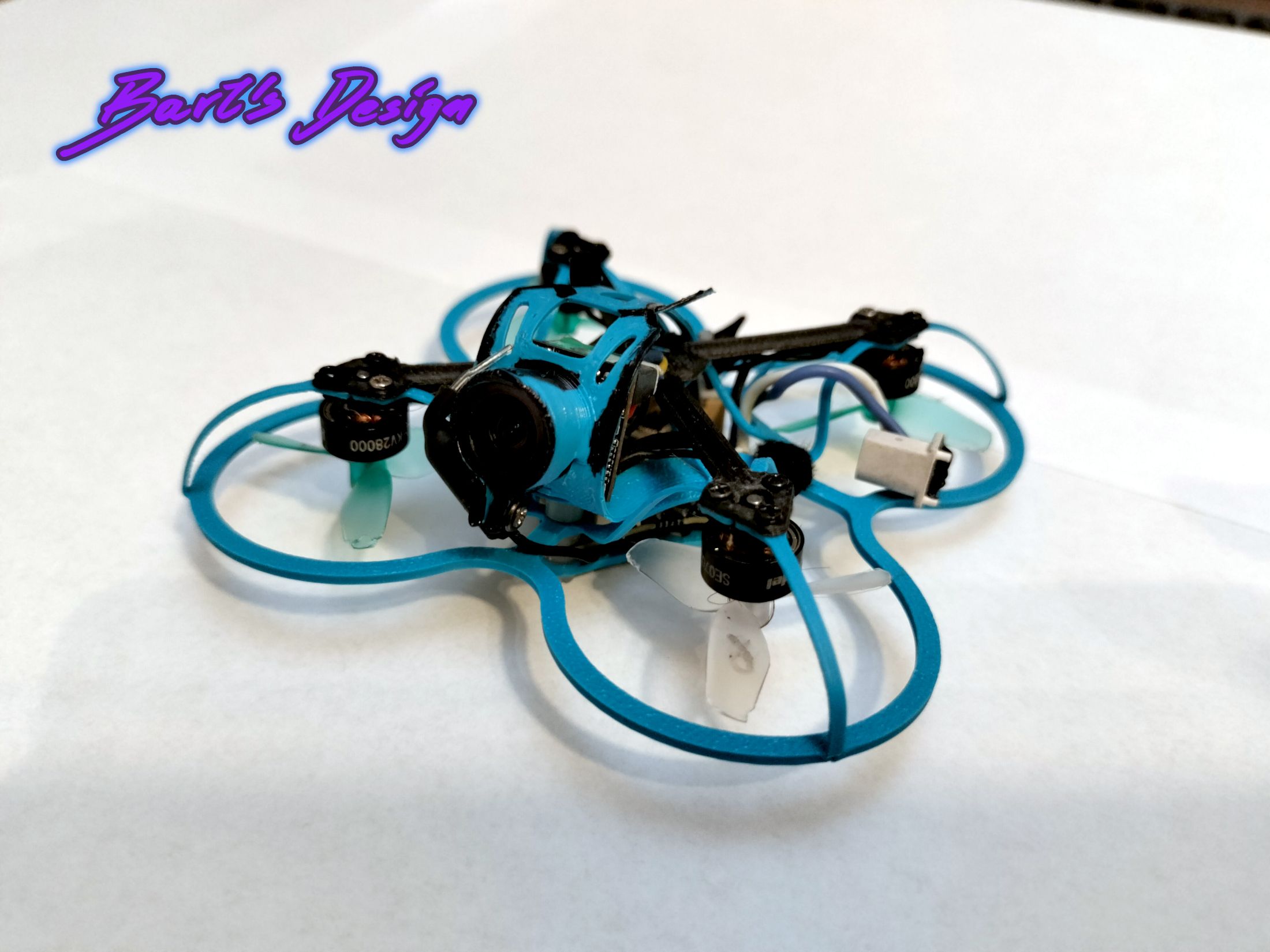

"Mantis" is 1,2" printable freestyle/racing 1S tinywhoop
Weights:

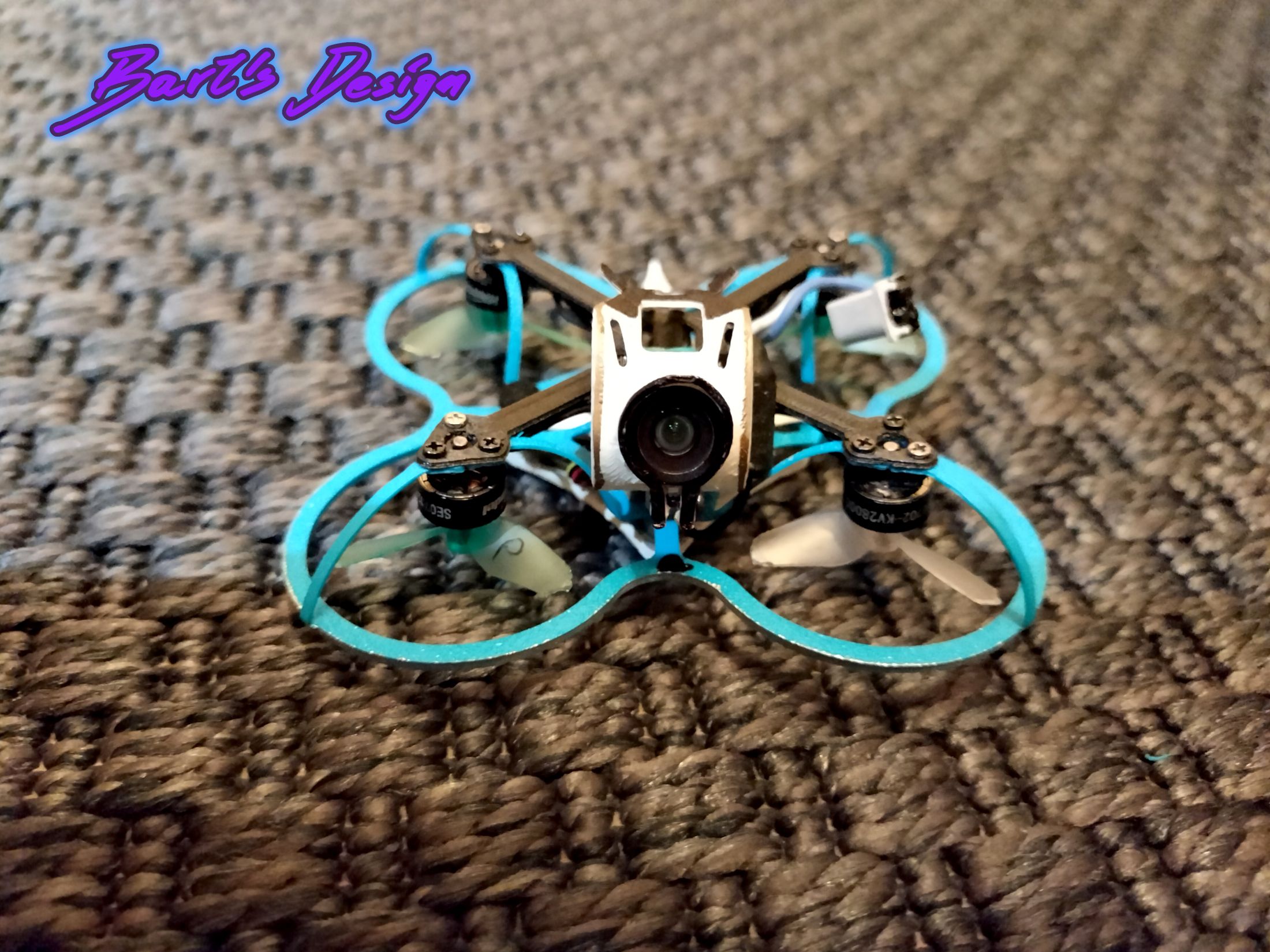

~18-19g for integral frame and analog video

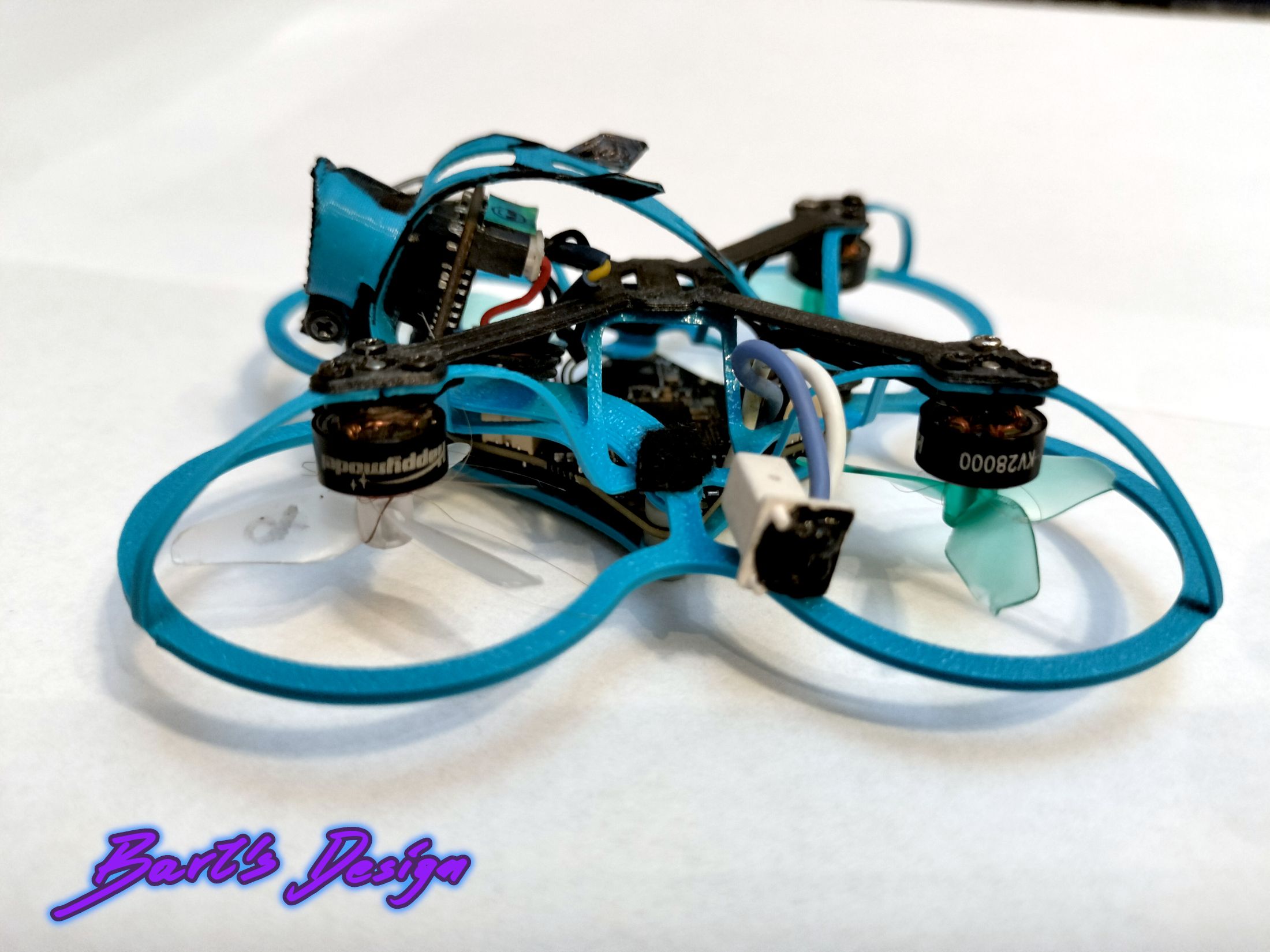

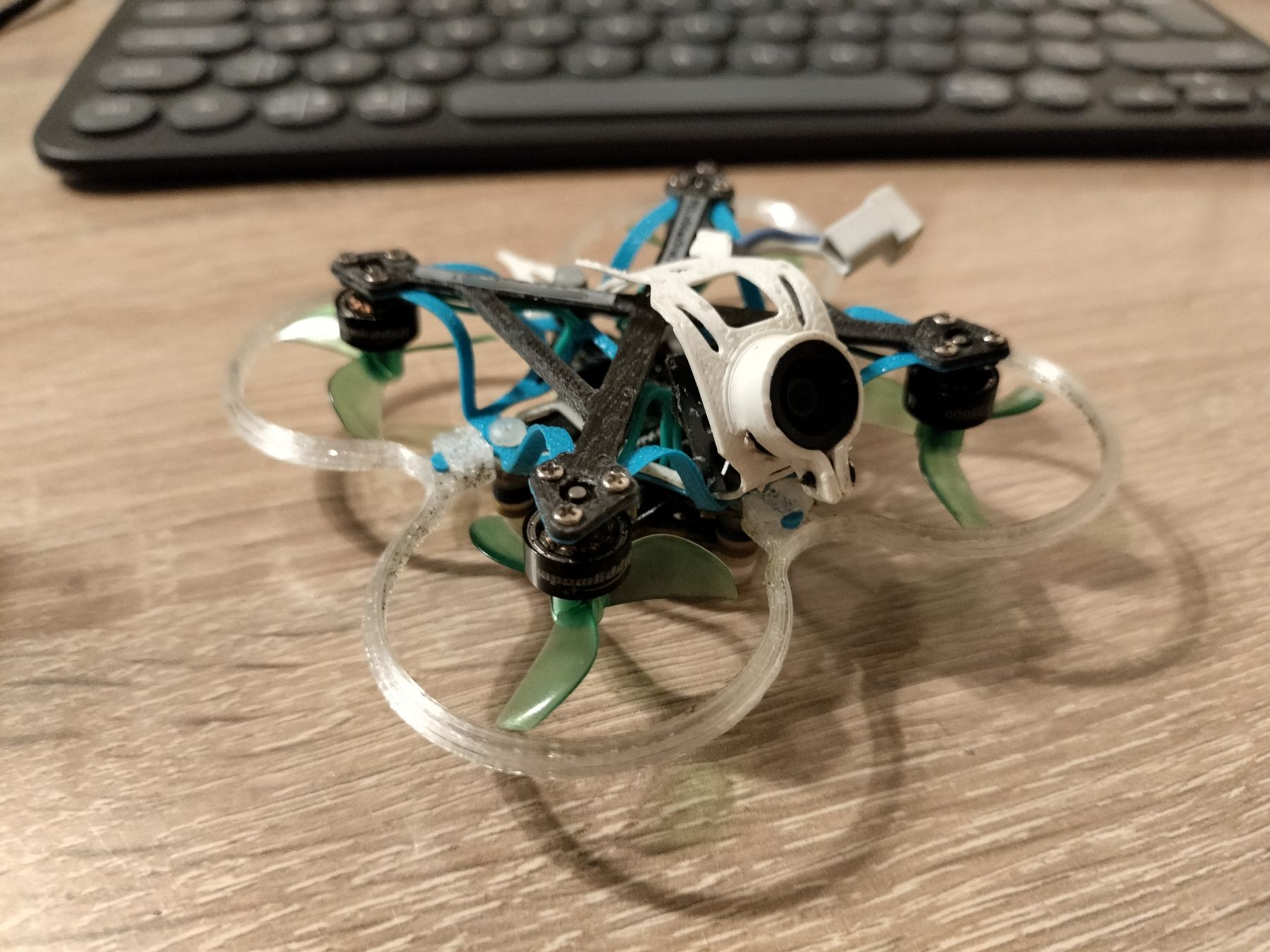

~23-24g for convertible frame(with ducts) and P1 video

• frame PA12
• ducts convertible PC
• canopy PA12 / PP
• FC cover PA12
• motor base PC-CF / PETG-CF
• tail support TPU
• sleeve(optional) any

• motor base printed mantis motor base or NEWBEEDRONE Cockroach V3 Carbon Fiber Motor Base

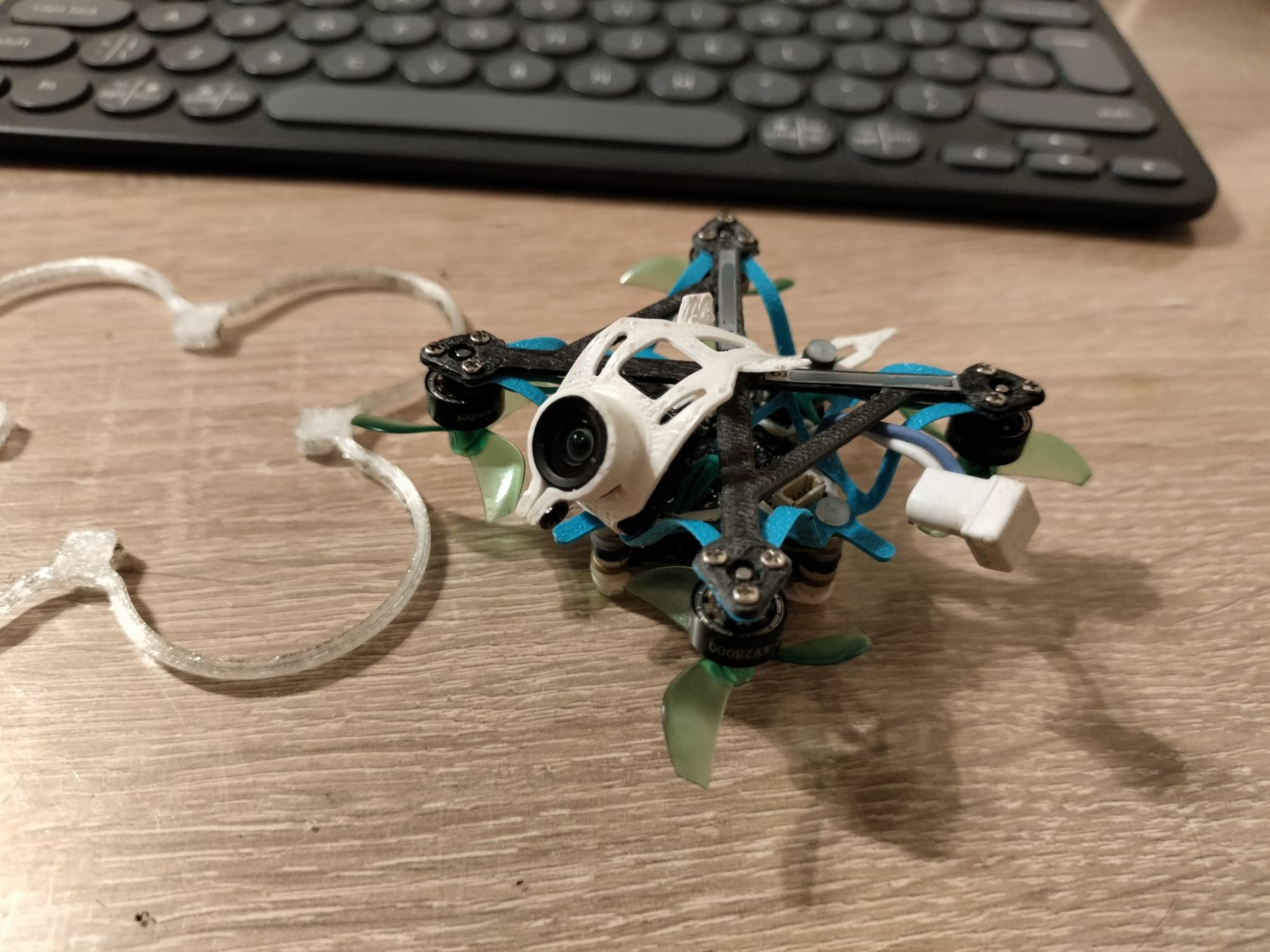

• frame printed mantis frame or NEWBEEDRONE Cockroach V3 65mm Ultra Light Frame PC/PP- order at least 1 spare
• propellers HQ 31mm Ultralight 3-Blade Propellers (1.0mm Shaft) or NBD Azi 3 blade 31mm
• PA screws (only for printed frame) 4x PA M2x15 screws
• PA nuts (only for printed frame) 4x PA M2 nuts

• FC BETAFPV Matrix 1S Brushless Flight Controller (5IN1 for SD or 4IN1 for HD)
• motors HAPPYMODEL SE0702 KV28000
• camera CADDXFPV ant lite / BETAFPV C03(SD) or P1 air unit(HD)
  > for SD: order also CADDXFPV Camera Accessories OSD Menu Board for ant lite camera, and switch video mode to PAL
• batteries BETAFPV LAVA 1S 260mAh 3.8V HV 80C BT2.0 (x5) - at least one set
• charger BETAFPV 6 Ports 1S Battery Charger (optionally with adapter)
• cable USB-C cable for communication
• VTX Foxeer reaper nano(only for SD 4in1)

• controller Jumper Bumblebee, or any other with ELRS and edgeTX
• batteries 2x 18650 any branded Li-Ion cells for controller supply
• goggle BETAFPV VR03 or any other analog goggles for SD
• memory 32G SDcard if you want to record your flights

• FC config betaflight configurator
• radio config ExpressLRS Configurator

If you are building remotely:

choose analog OSD Protocol and type OSD_HD in custom defines, to build firmware with both- digital and analog OSD
