Original Author: scirocco
Source: RotorBuilds.com

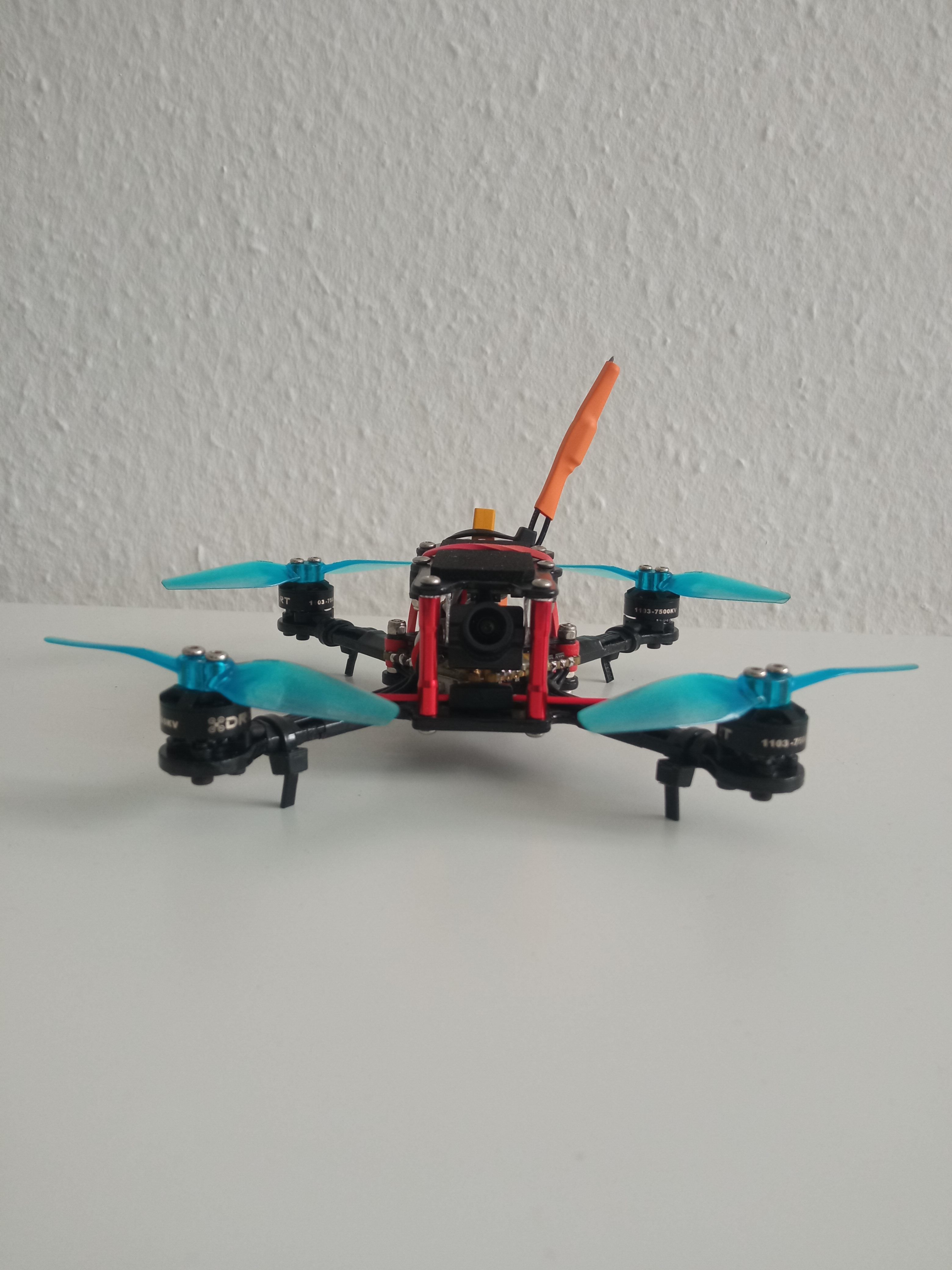

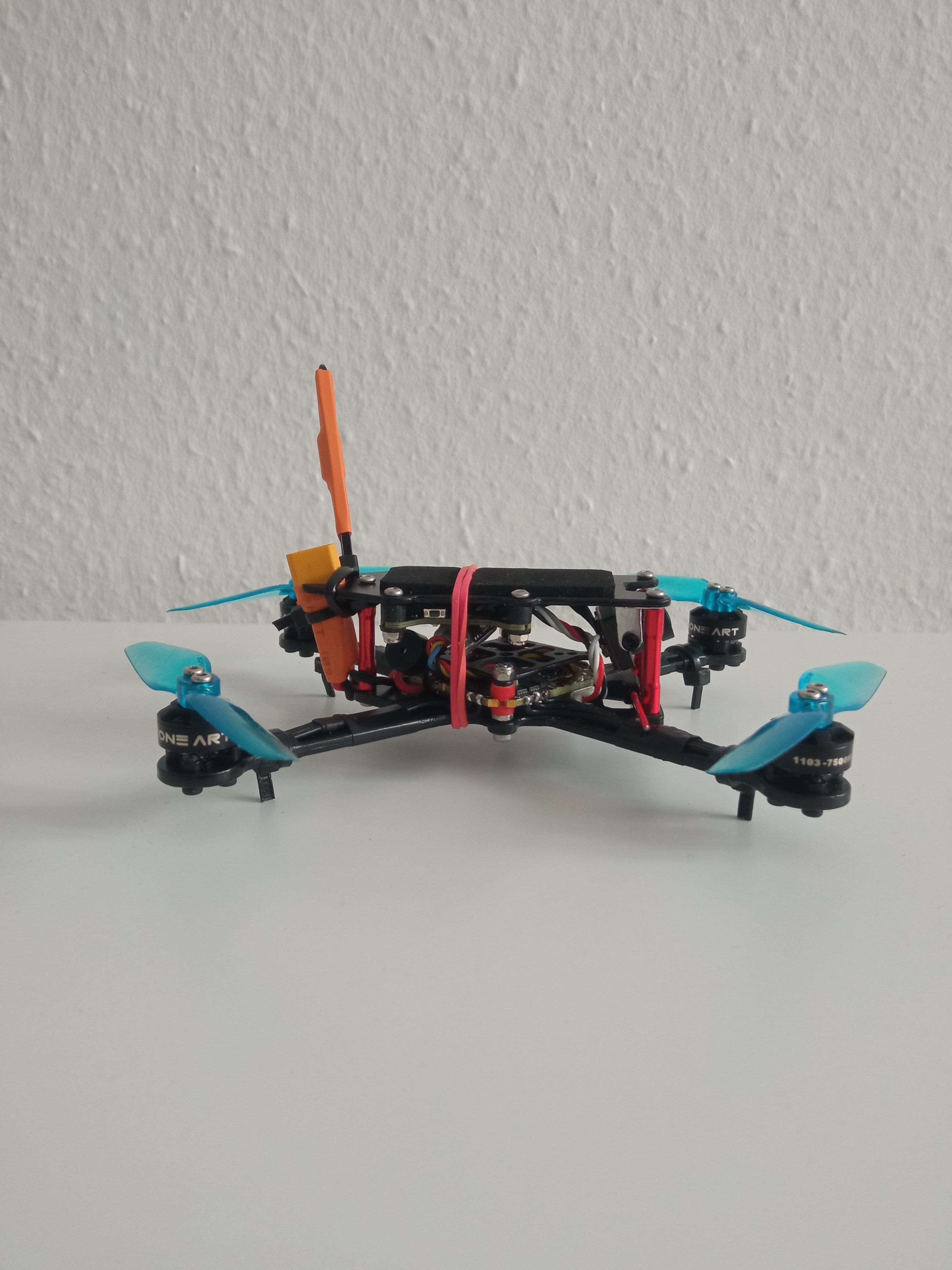

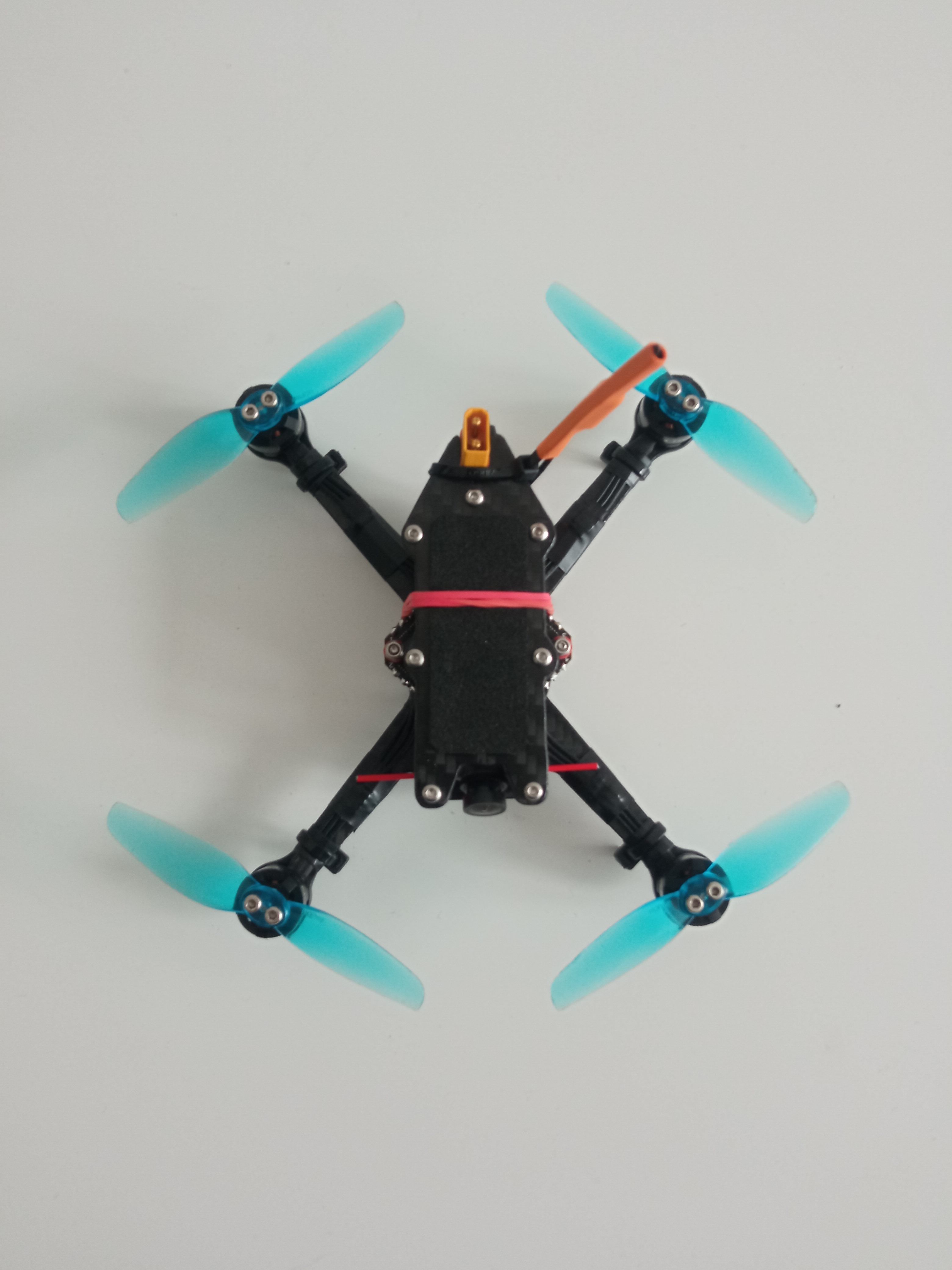

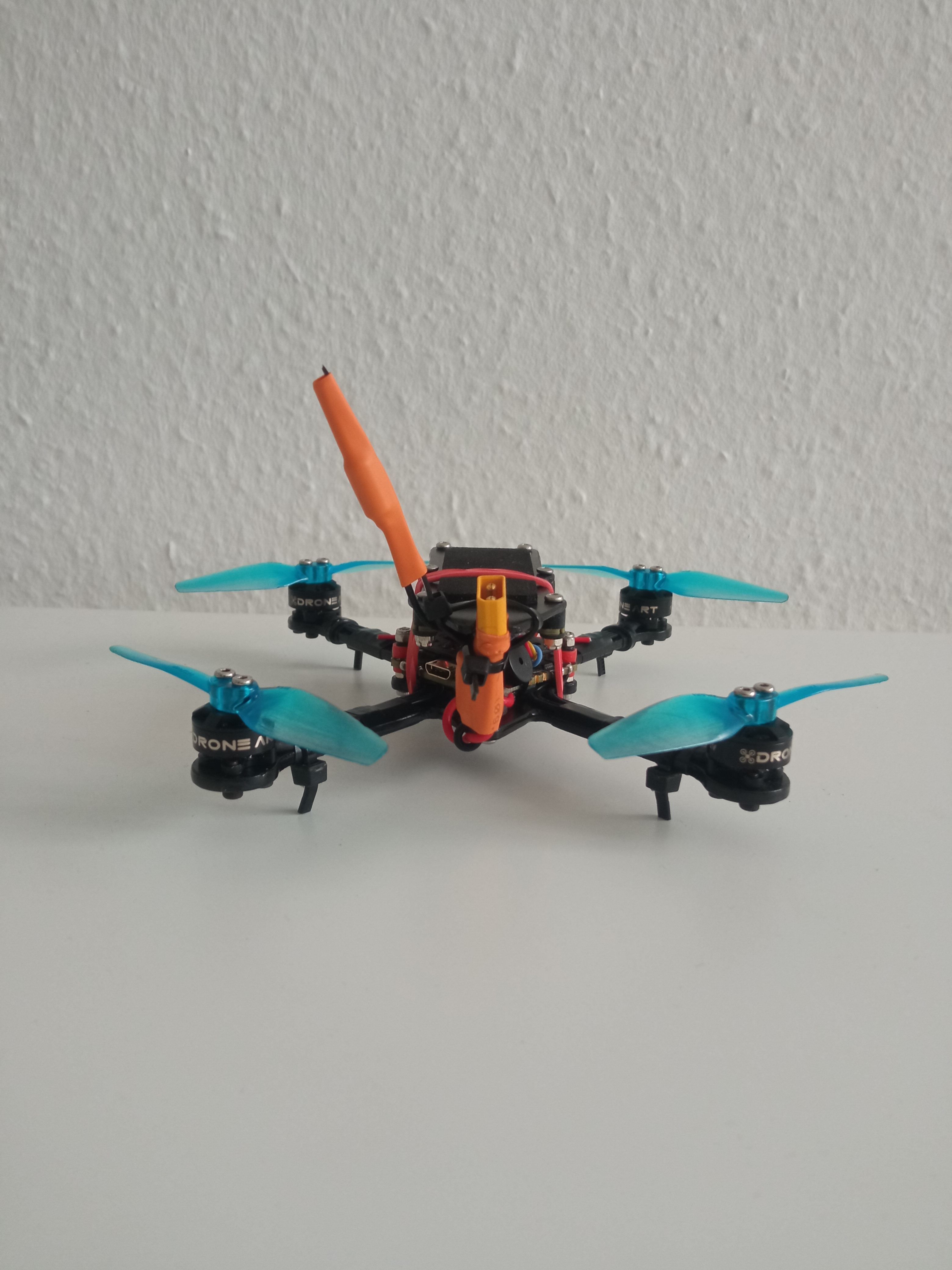

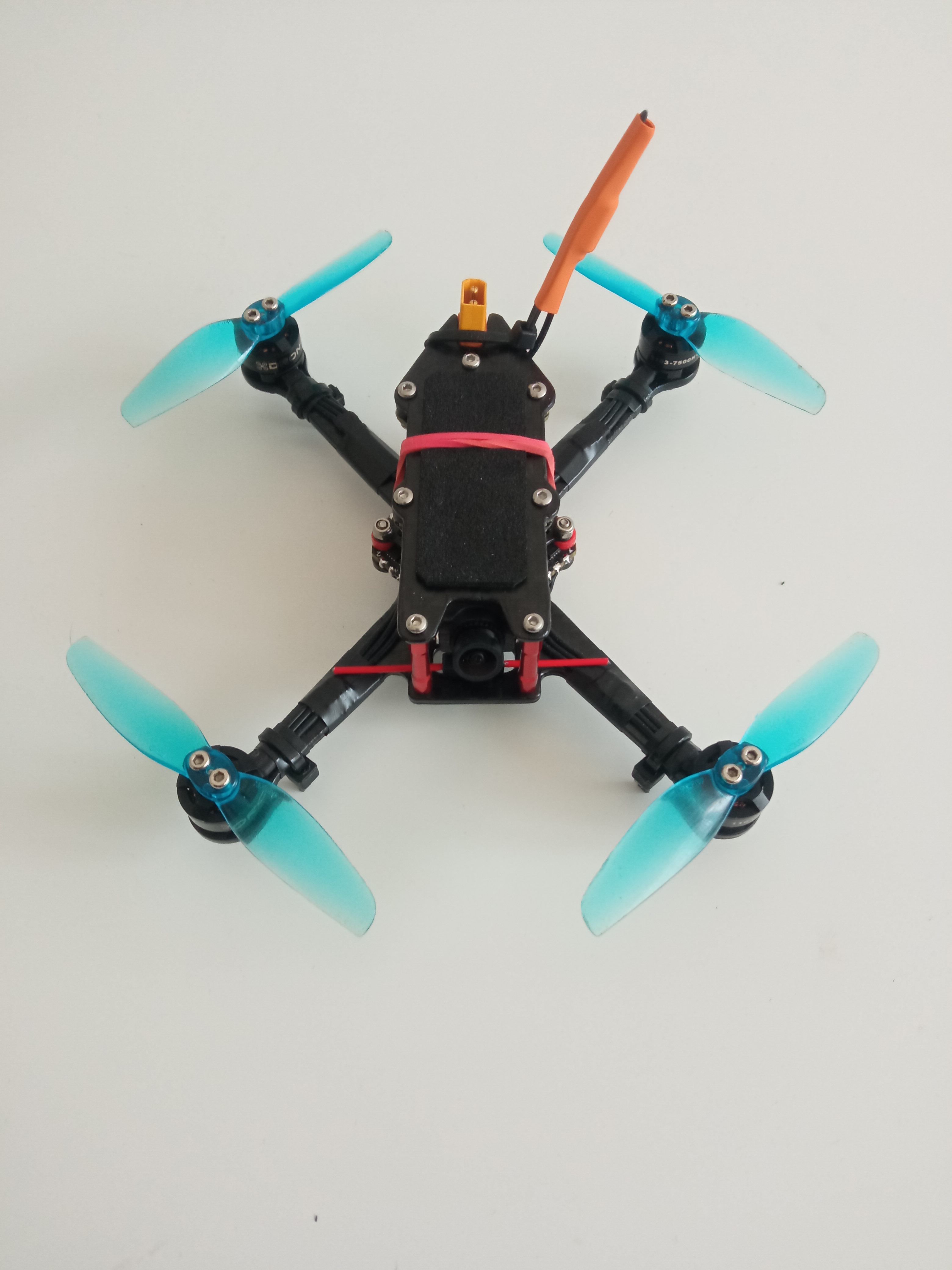

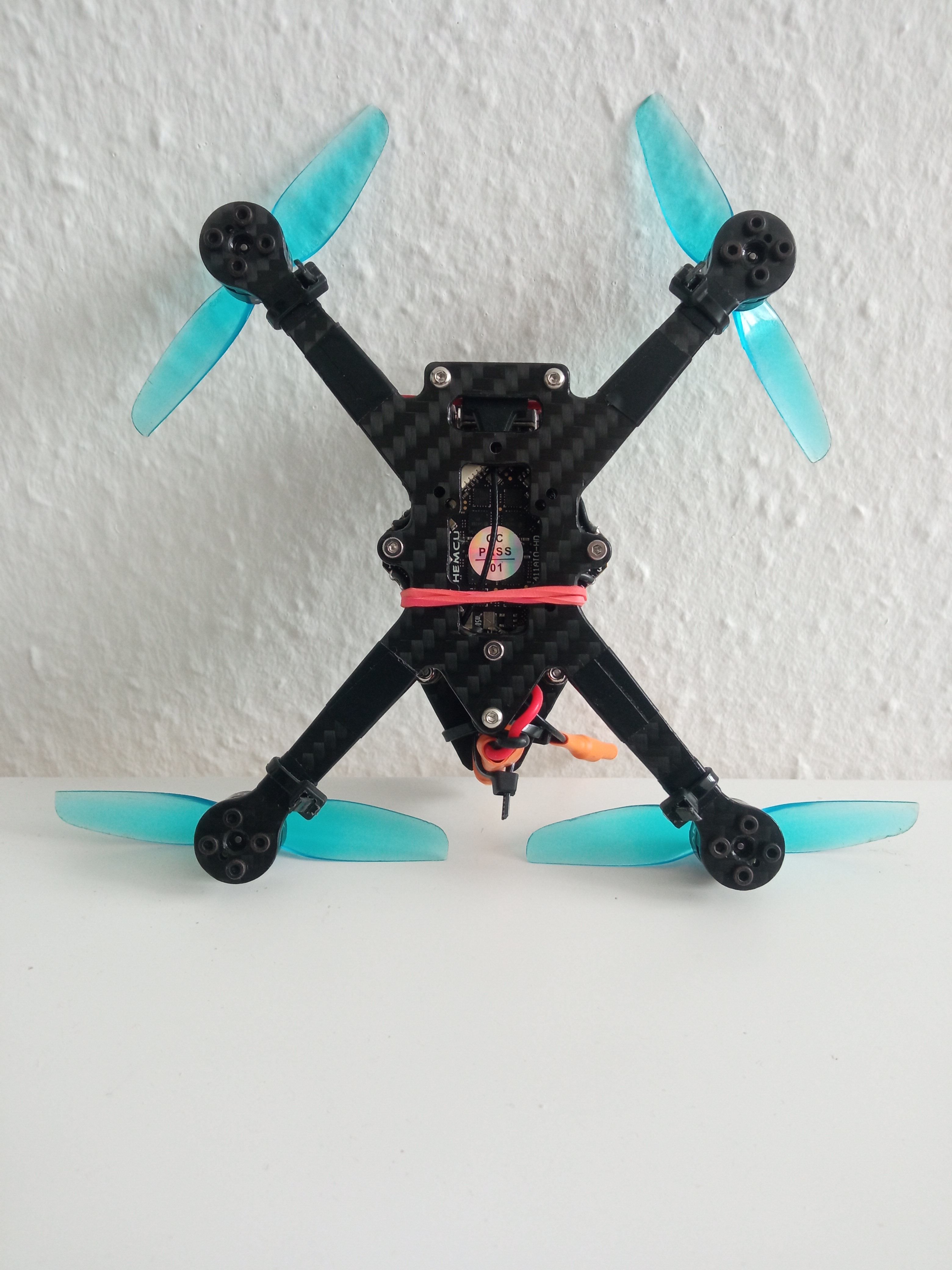

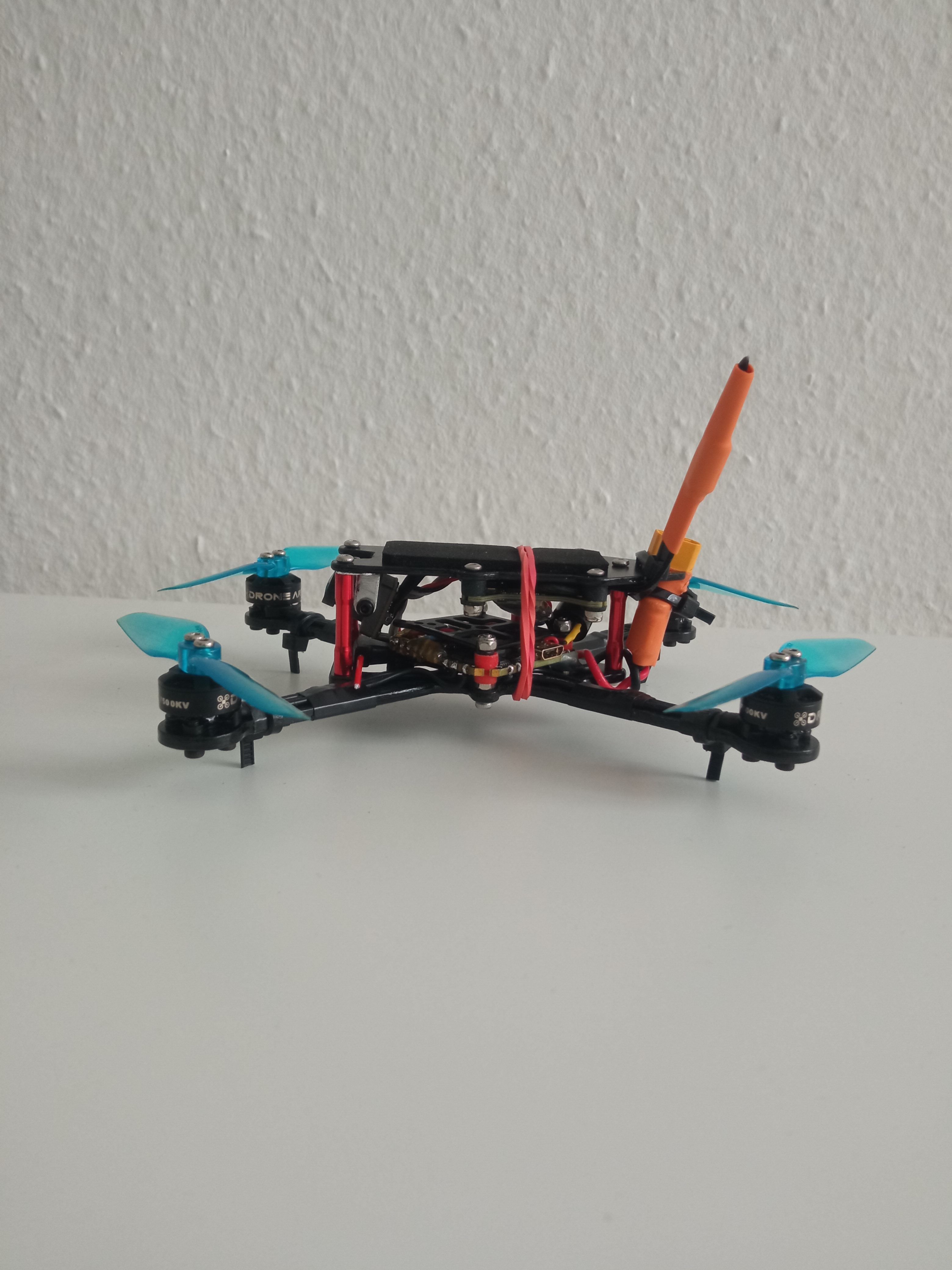

First Digatal build with Caddx Ascent solution!
first fly:

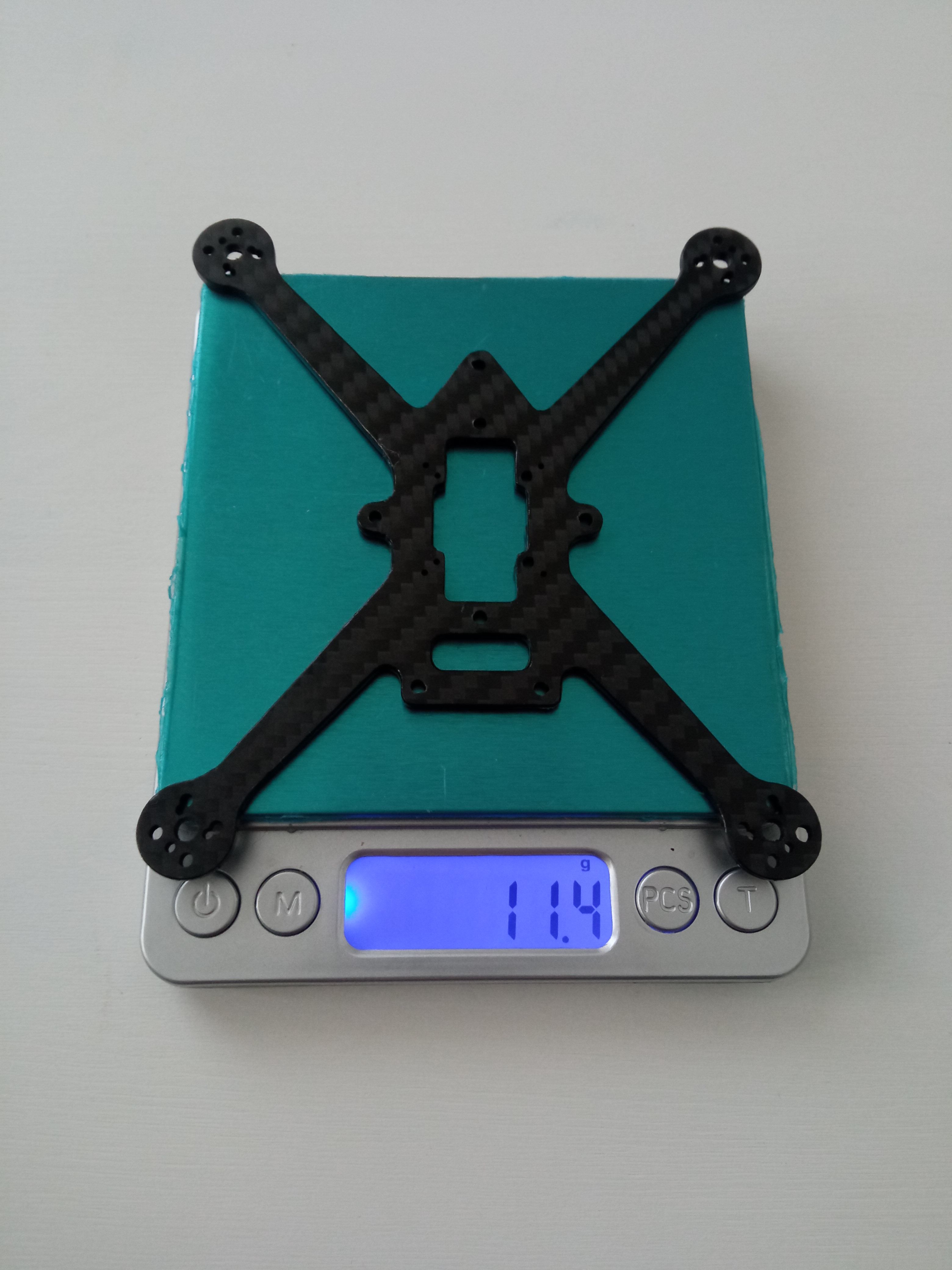

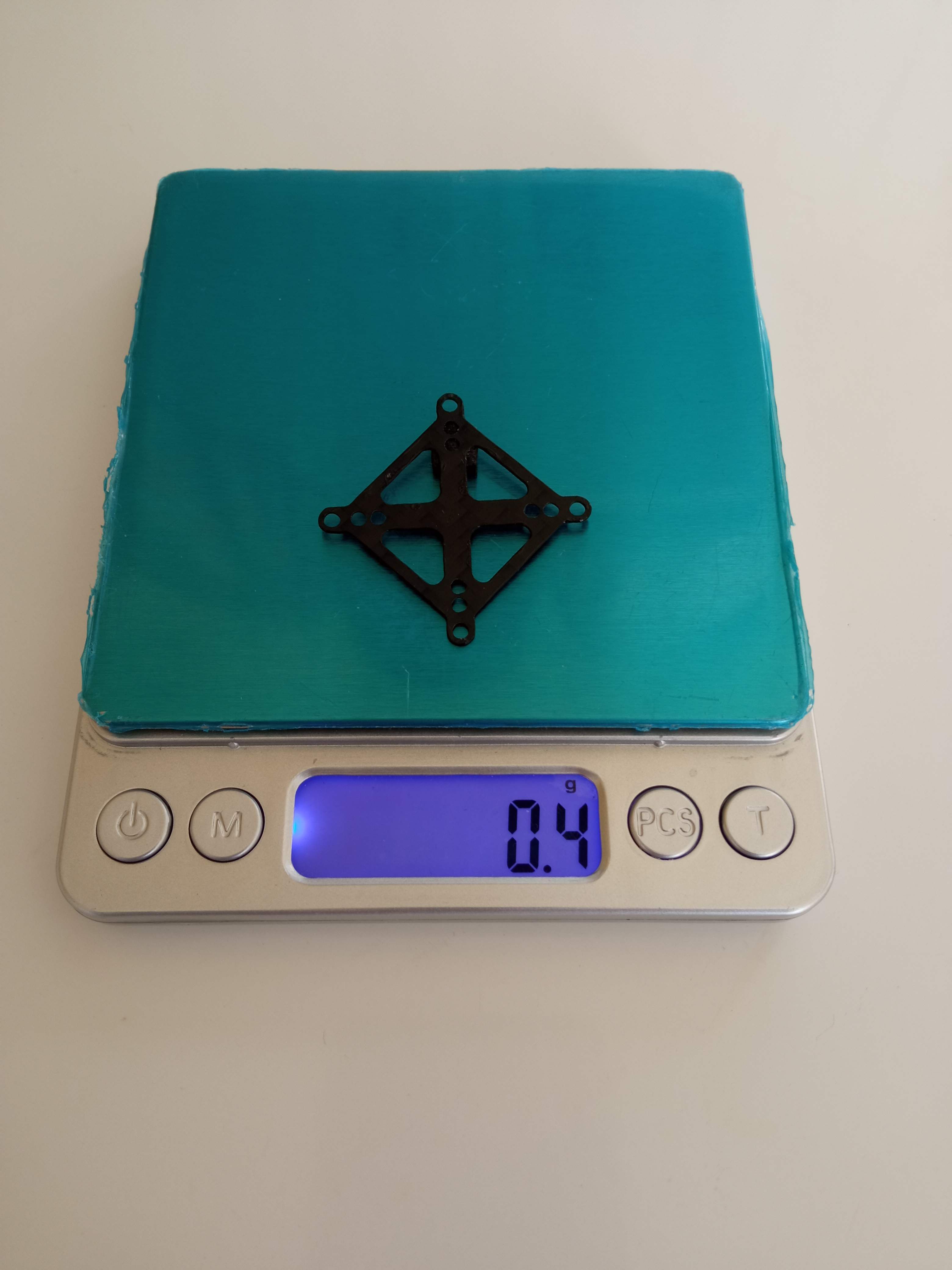

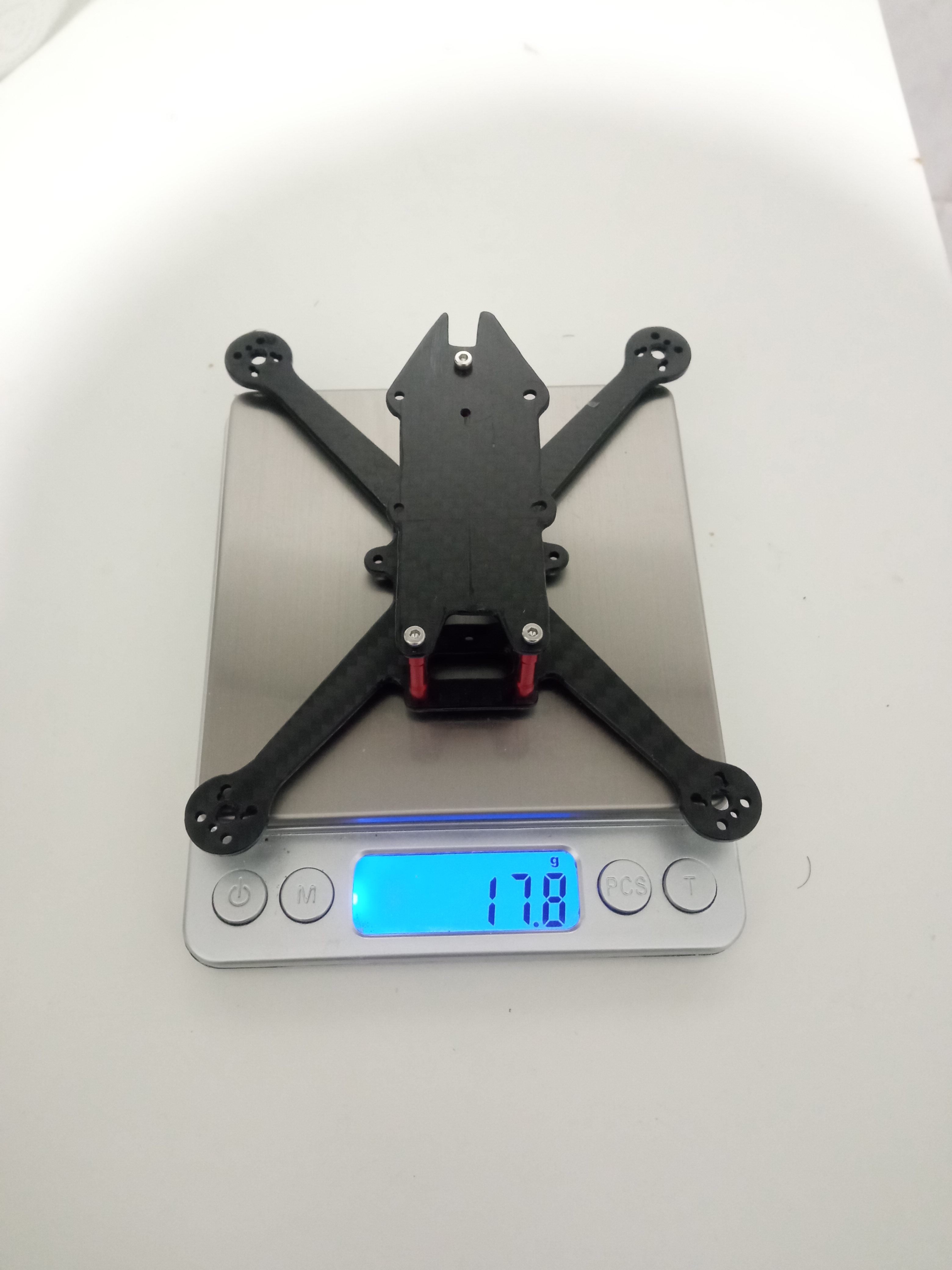

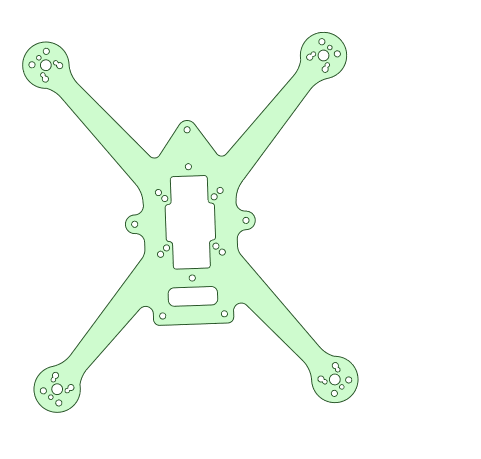

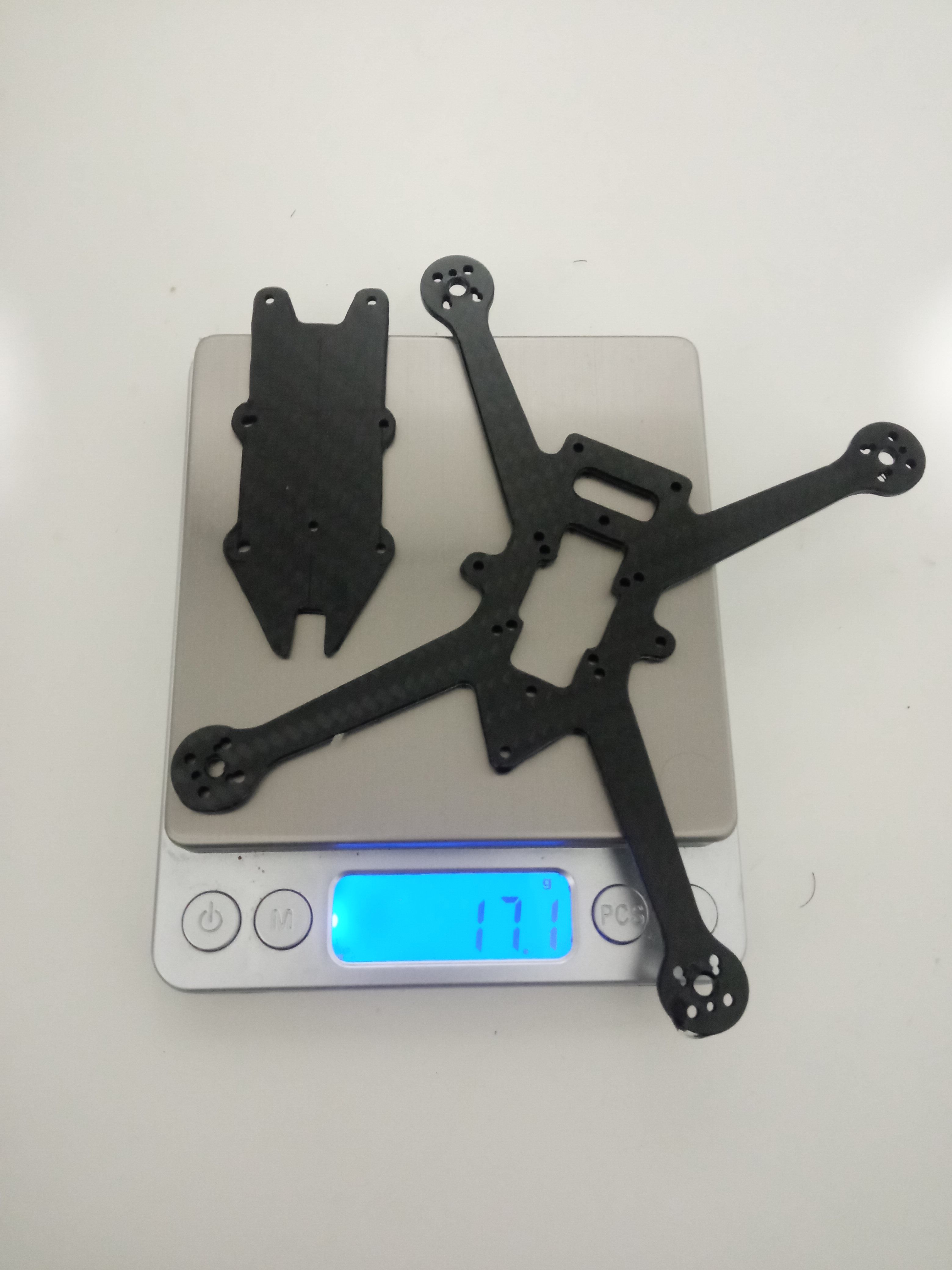

Frame: Own development and cut by ccarbon.hu (11,4g-17,3g)

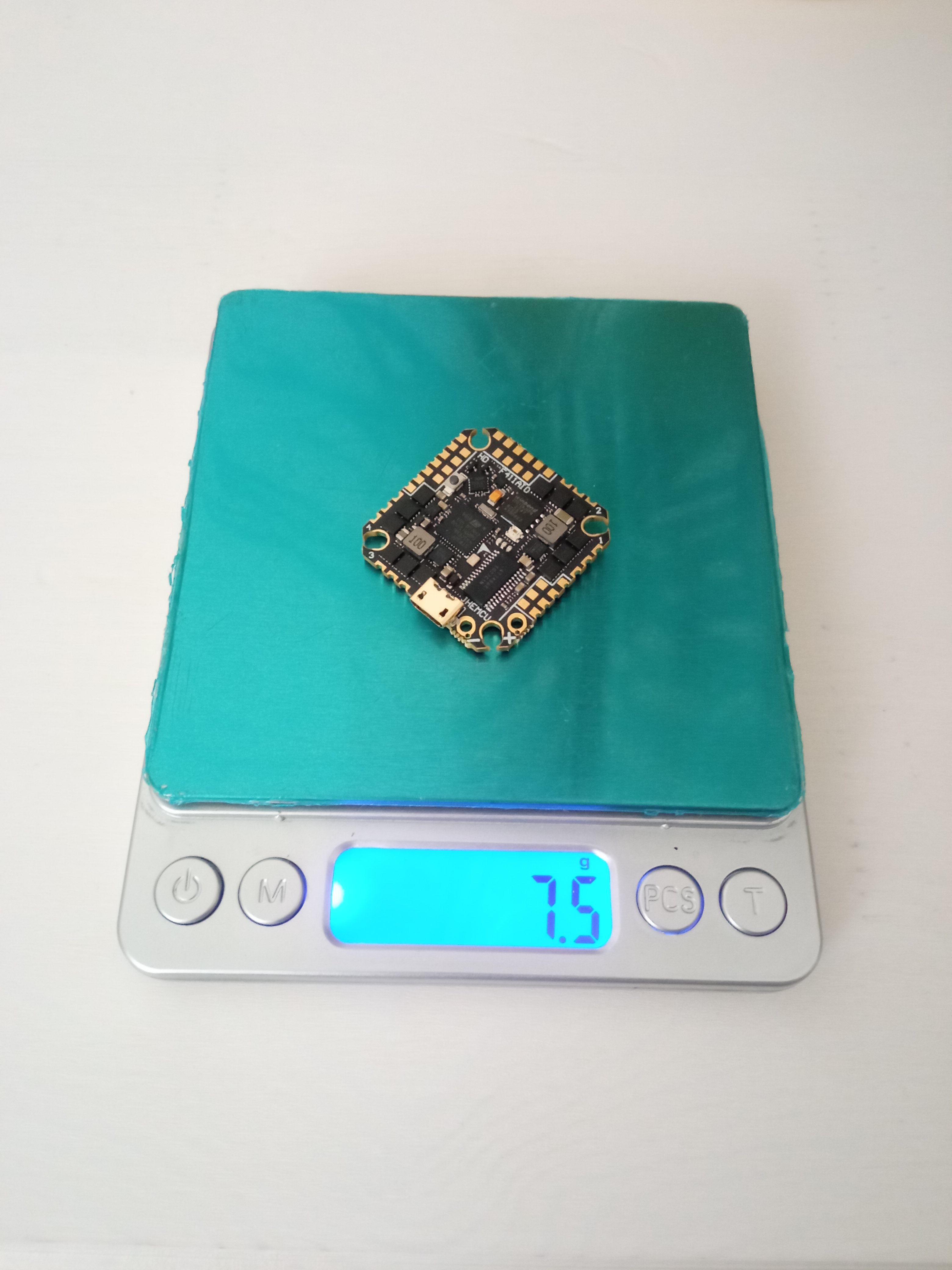

FC: JHEMCU GHF411AIO-HD 40A OSD Flight Controller ESC 2-6S (7,5g)

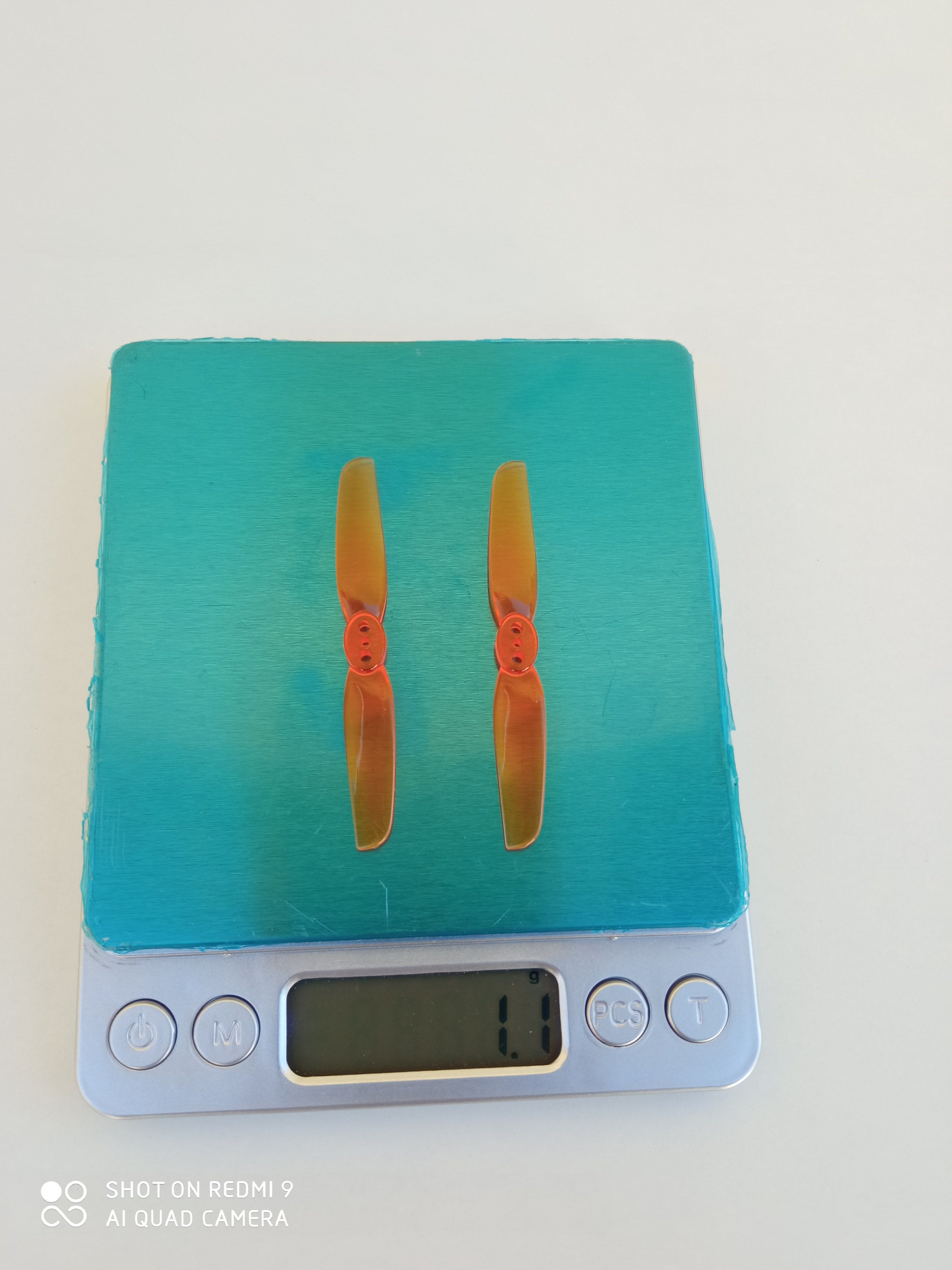

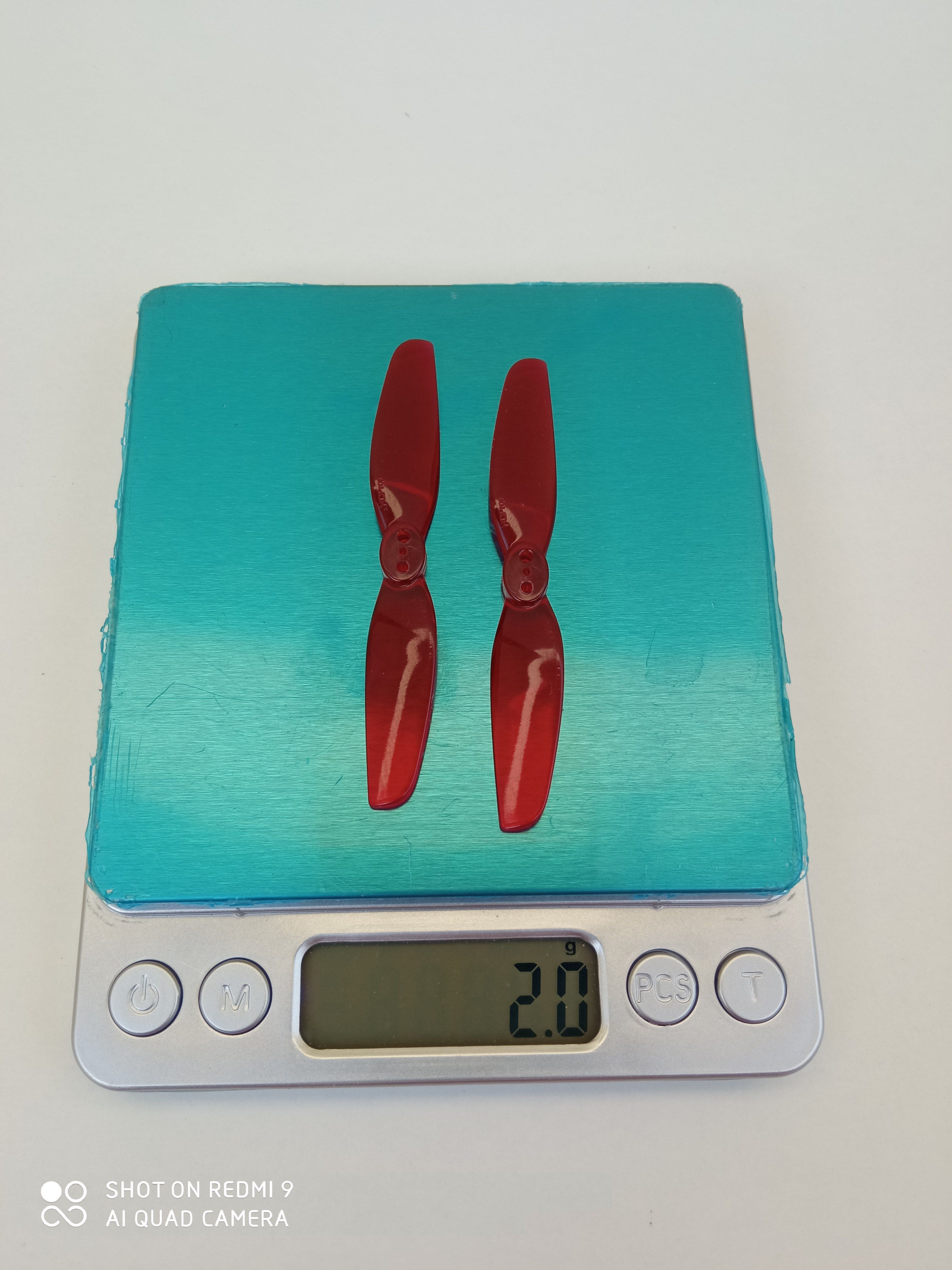

Propeller: HQ Prop Durable 3020 2-Blade Propeller (1g)
HQ Prop Durable T65MM 65mm 2.5 Inch 2-Blade Propeller (0,55g)

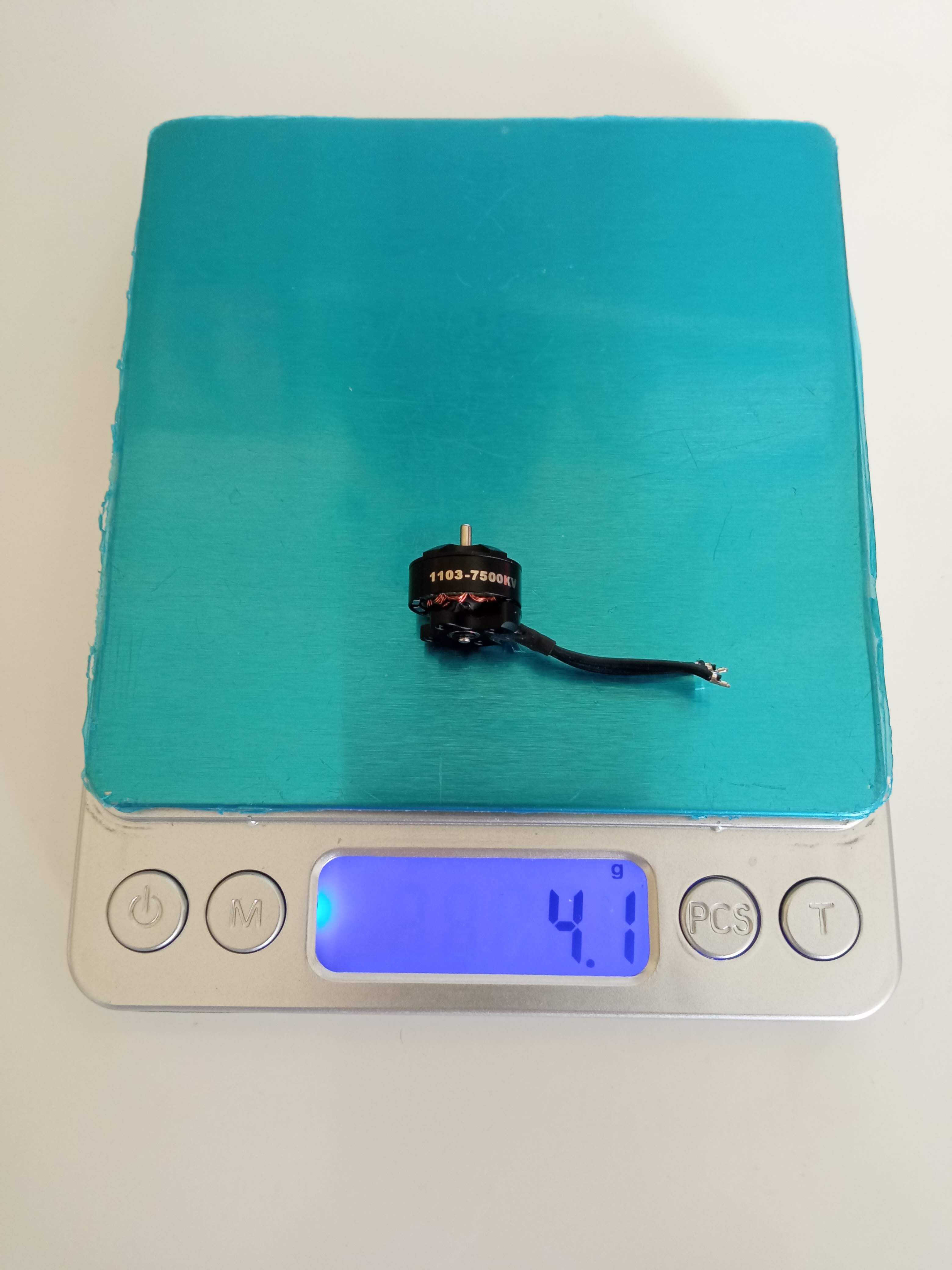

Motor: DroneART 2-3S 1103/7500KV (4,1g)

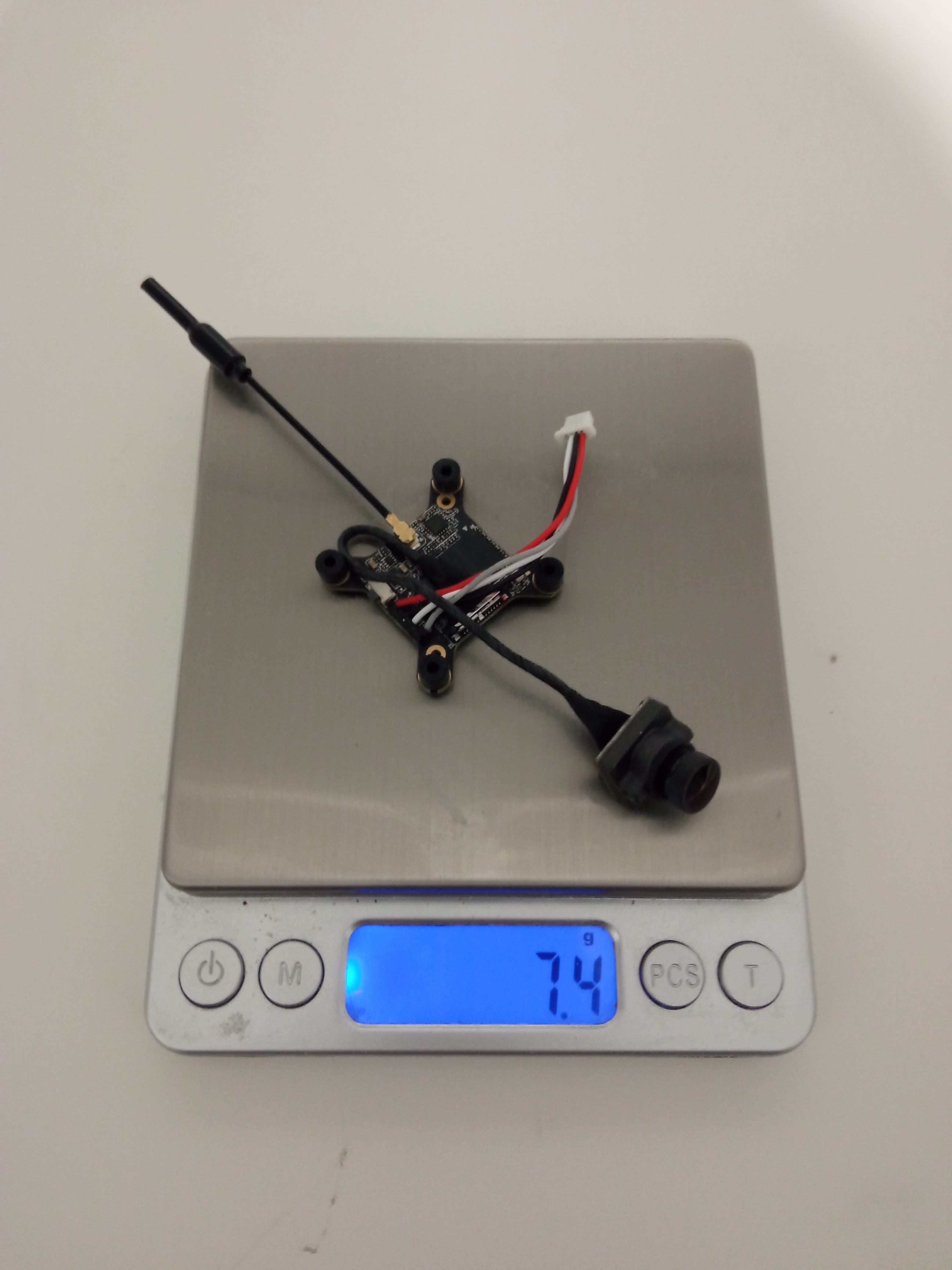

VTX: CADDXFPV Walksnail Ascent Lite VTX Kit Digital Image Transmission 1080P/60FPS 35ms low latency (5g)
Camera: CADDXFPV Walksnail Ascent camera (2,4g)
Receiver: ELRS
Weight: 73g
Battery: GNB HV 3S 380mah (31g)

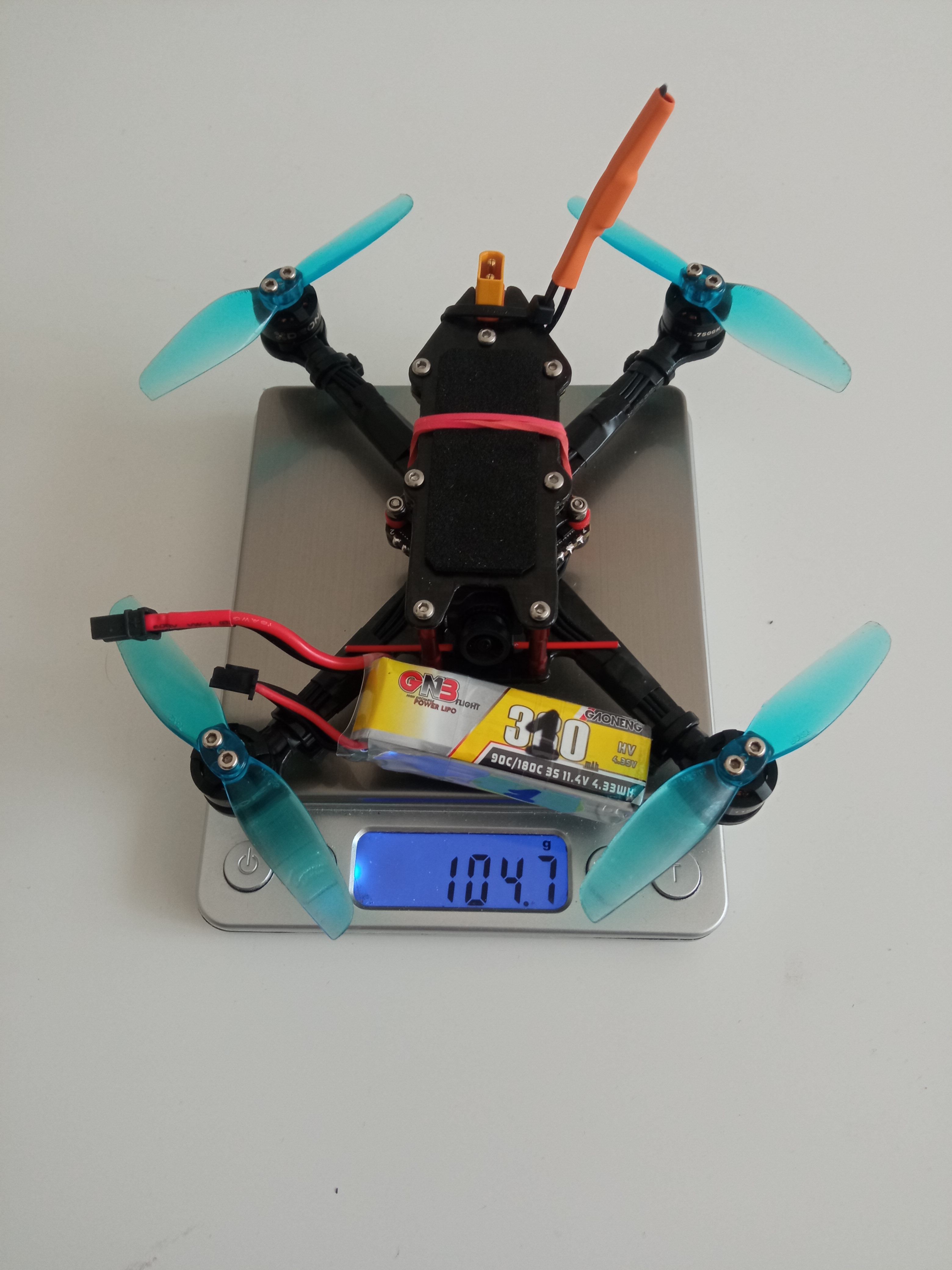

Summ weight: around 104g
Fly time: 5minutes
Source: RotorBuilds.com
